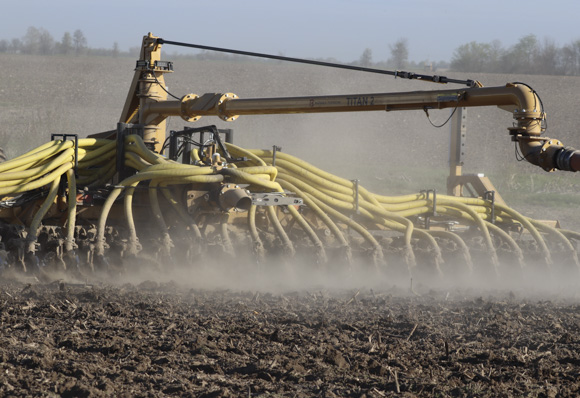

Phantom 2 units can achieve GPA rates from 2,500 up to 20,000. GPA rates will be dependent on unit spacing, ground conditions, type of liquid manure, etc. Phantom 2 is available with the Edge upgrade for GPA capabilities up to 25,000.

*Images shown include Edge upgrade.

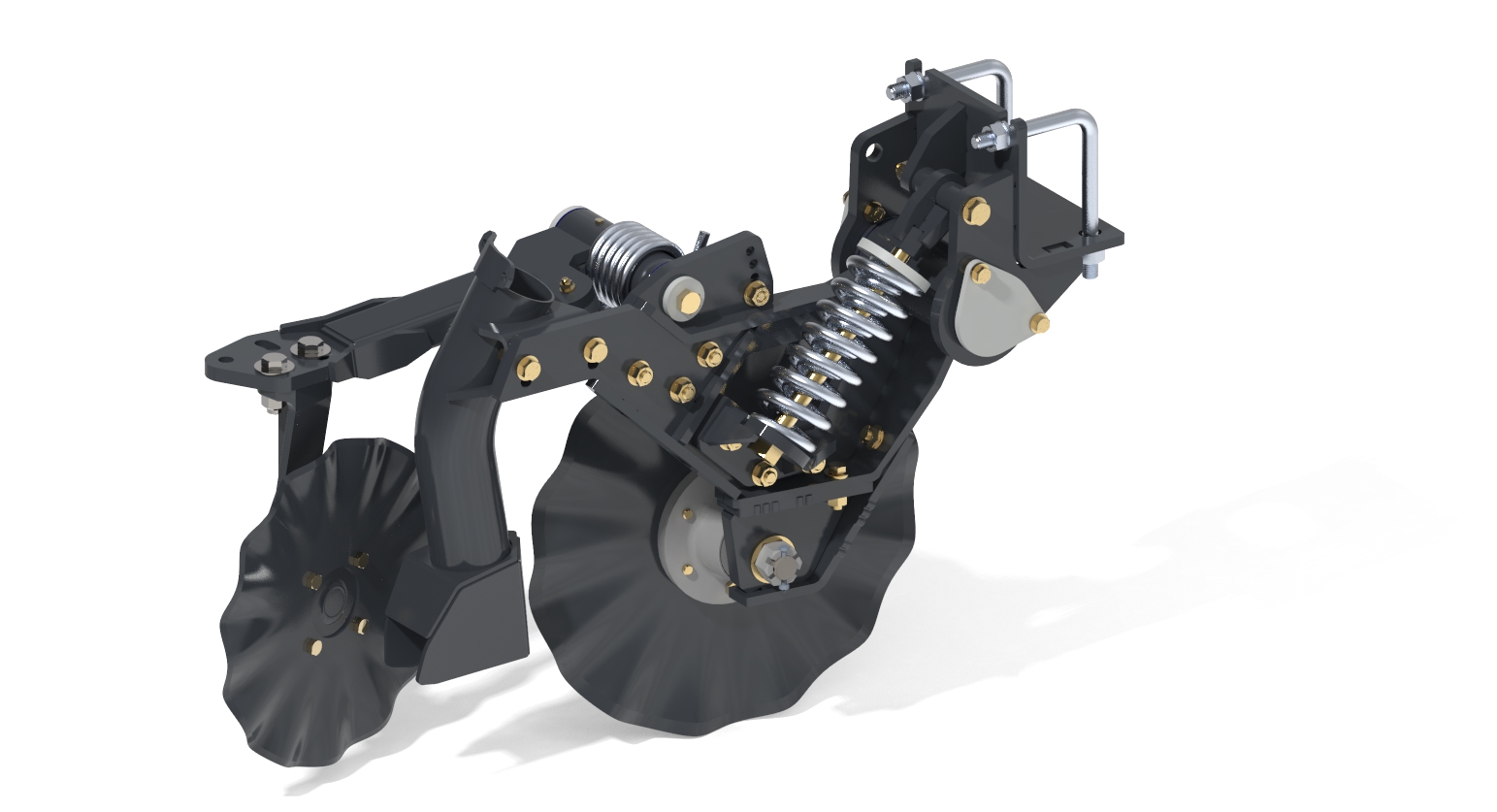

All pins, attachment points, and structures have been reinforced for longevity and performance in demanding environments. Pins are nickel–plated for corrosion resistance, decreased wear, and smoother operation. Less overall wear on the unit leads to more consistent performance, season after season.

Greaseless main pin and closure pin bushings, as well as the heavy–duty sealed main hub and closure hub bearings, make this unit entirely maintenance–free during the application season.

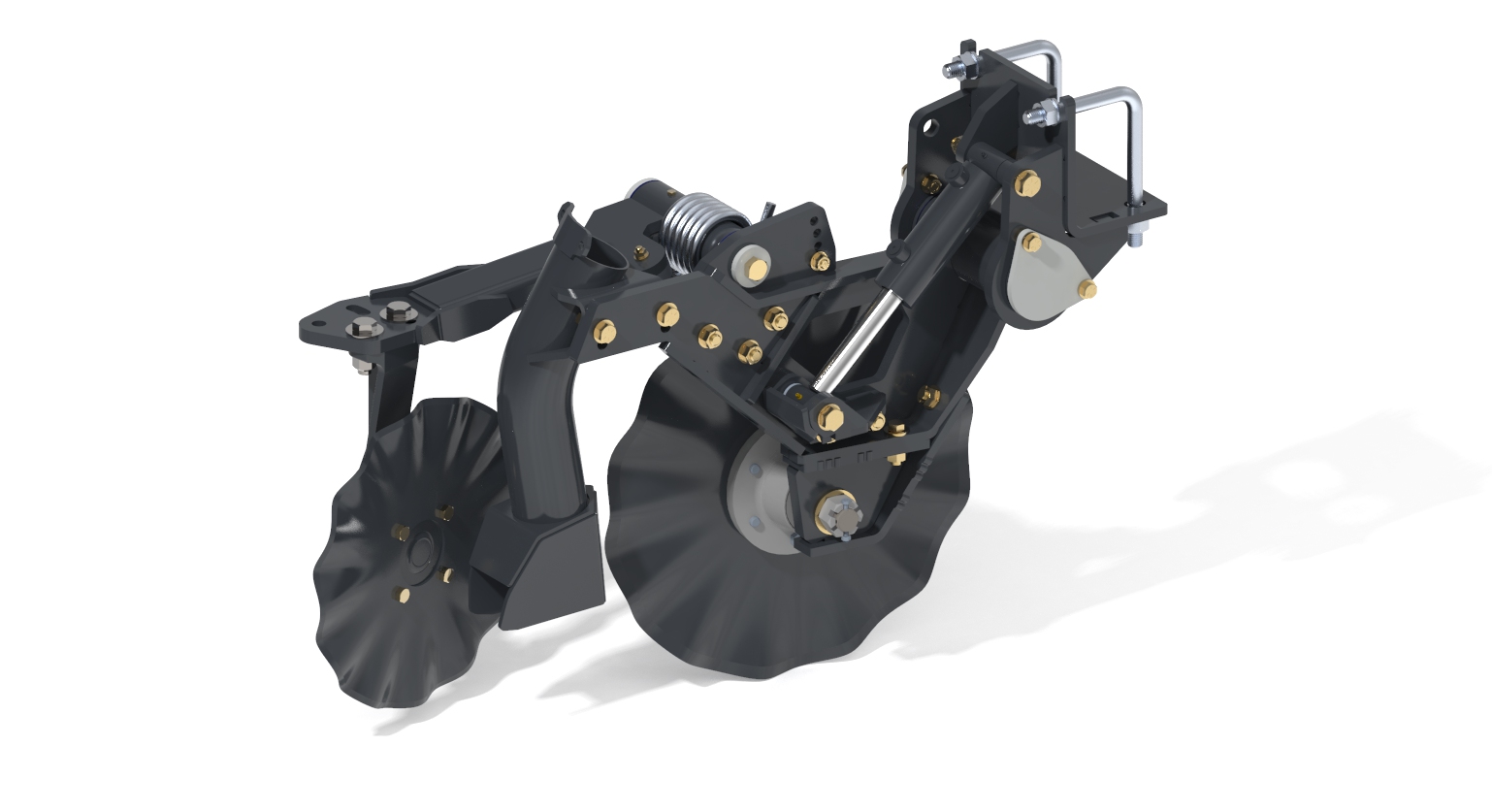

Phantom 2 injection units use easily replaceable bolt-on subcomponents and wear parts for simple, low-cost maintenance and repairs. All bolted pivot joints have replaceable bushings to prolong unit life.

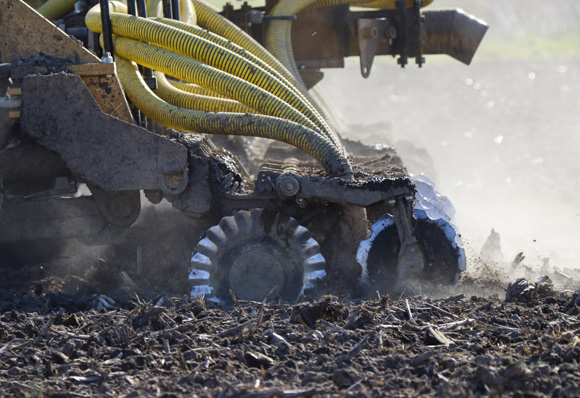

New to Phantom 2, a heavy-duty torsion spring can now be adjusted to apply increasing amounts of down pressure to the closure blade, ensuring consistent coverage in varying field conditions and soil types. To achieve better coverage when the ground is excessively hard, or there is limited dirt to displace, adjust the downforce of the closure blade to facilitate the movement of additional dirt and plant matter back over the trench. Even when set to zero down pressure, the spring helps keep the blade rolling over the ground as it should, even at high speeds.

This helps with Phantom 2’s ability to seal the liquid manure into the ground and reduces the amount of liquid manure discharged above the ground, resulting in greater nutrient absorption and odor control. Your bank account and your neighbors will thank you.

The Phantom 2 Injector is available fully assembled on new Titan toolbars and tank bars.

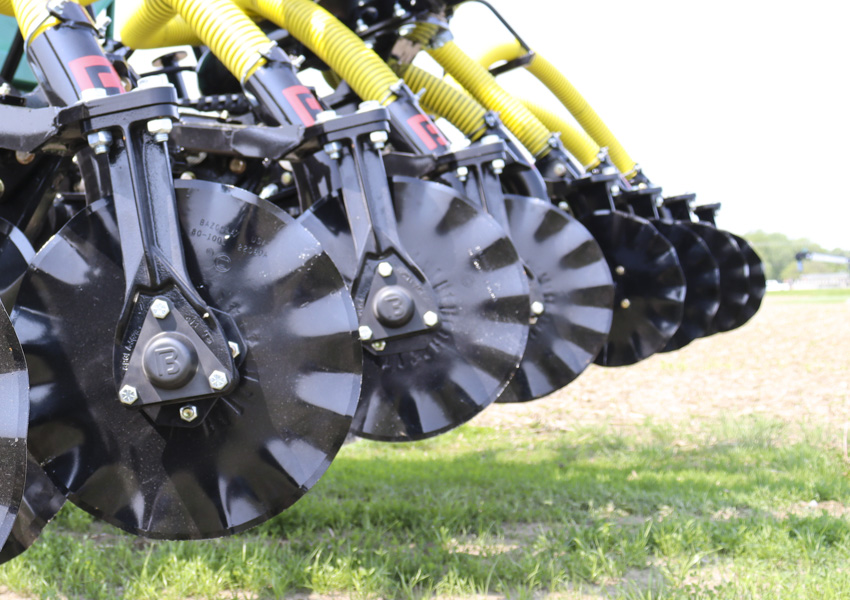

Each Phantom 2 unit moves individually from one another, allowing thorough coverage of various field conditions. Whether you’re running on rocky terrain, corn trash, chopped corn silage, bean stubble, hay ground, or cover crops, the Phantom Injector produces a grade-A performance.

Have high gallon per acre (GPA) demands? We’ve got you covered. The powerful Phantom Edge can achieve up to 25,000 GPA while also delivering high-level performance at lower rates, too. It’s the best of both worlds.

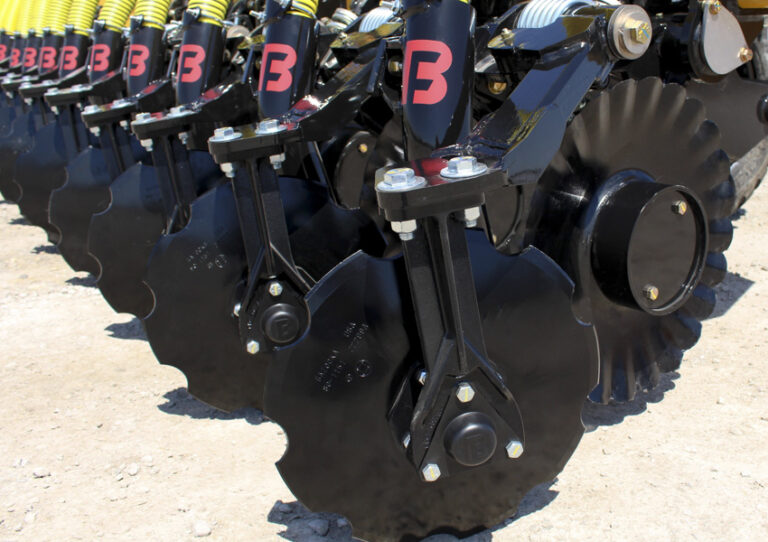

Featuring a serrated and concave 22″ diameter main blade, the Phantom Edge effortlessly penetrates harder-than-usual ground conditions and provides the ability to cut a larger ‘trench’ to hold higher volumes of liquid manure. The Phantom Edge unit does create more ground disturbance than the original, while creating less disturbance than a traditional high-rate injection solution.

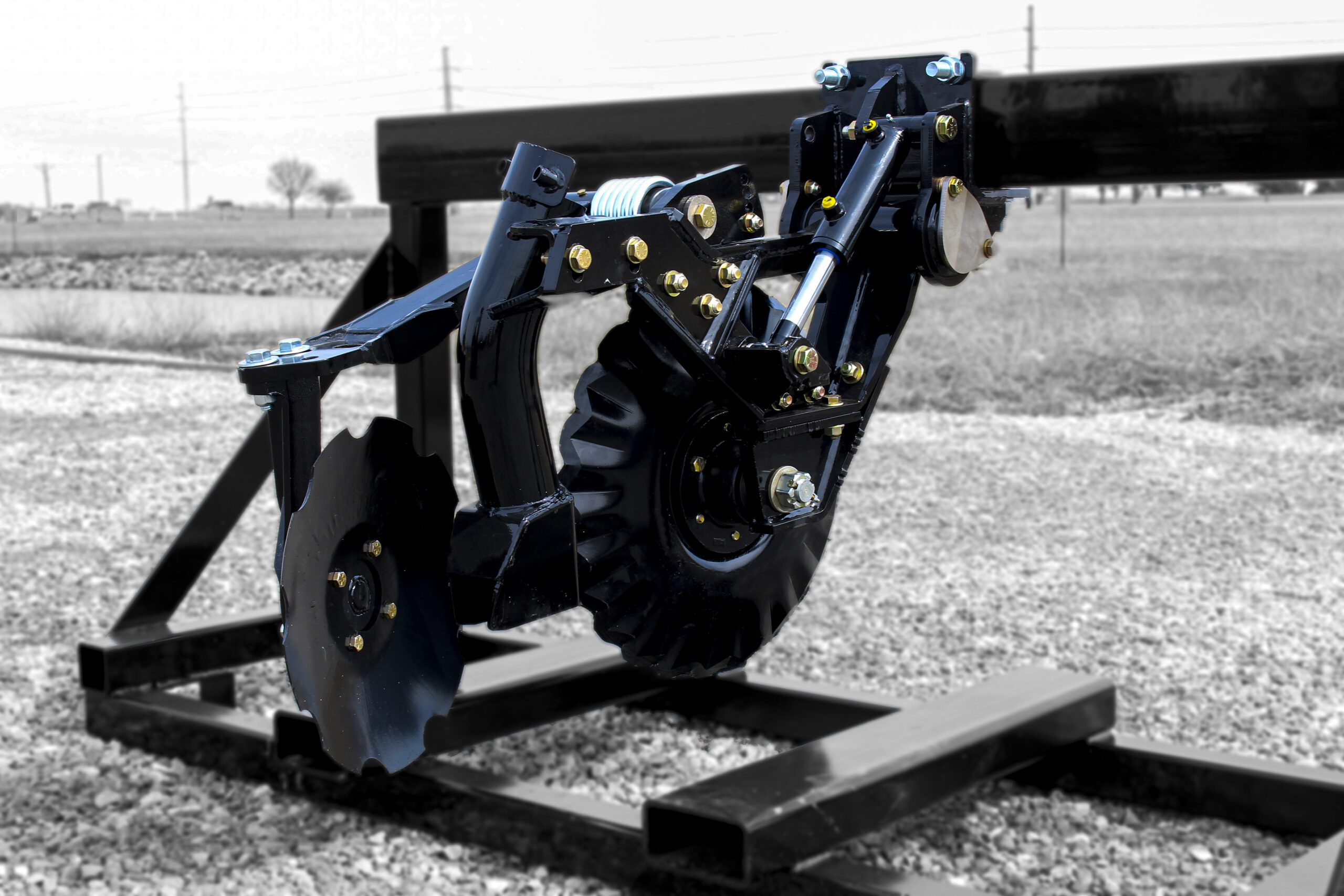

The Phantom Edge is also equipped with a notched and concave 18″ diameter closure blade that has been placed on a strengthened and repositioned closure arm. This blade setup rolls the dirt back over the ‘trench’ for thorough coverage.

The Phantom Edge injects liquid manure into the ground so precisely that you might not even be able to tell it went through the field (hence its name). Minimal soil disturbance allows the ground to maintain its topsoil profile, reducing erosion, streaking in the field and liquid manure runoff.
