Phantom Edge Injector

Get the competitive edge.

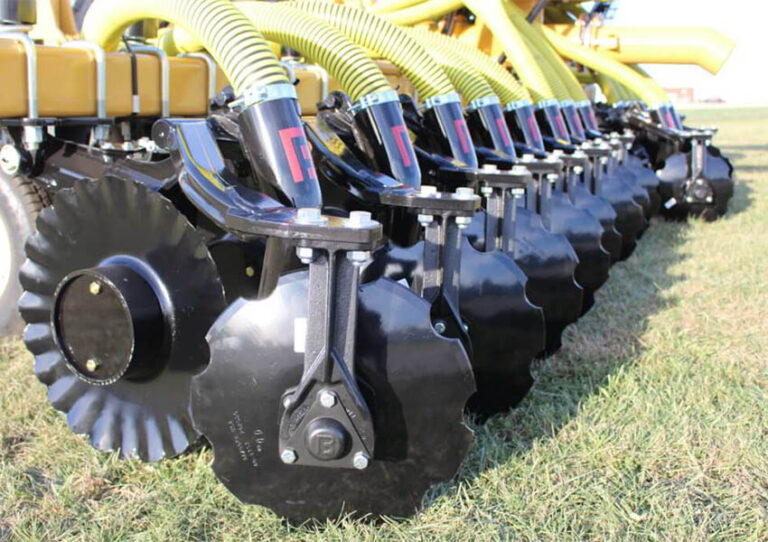

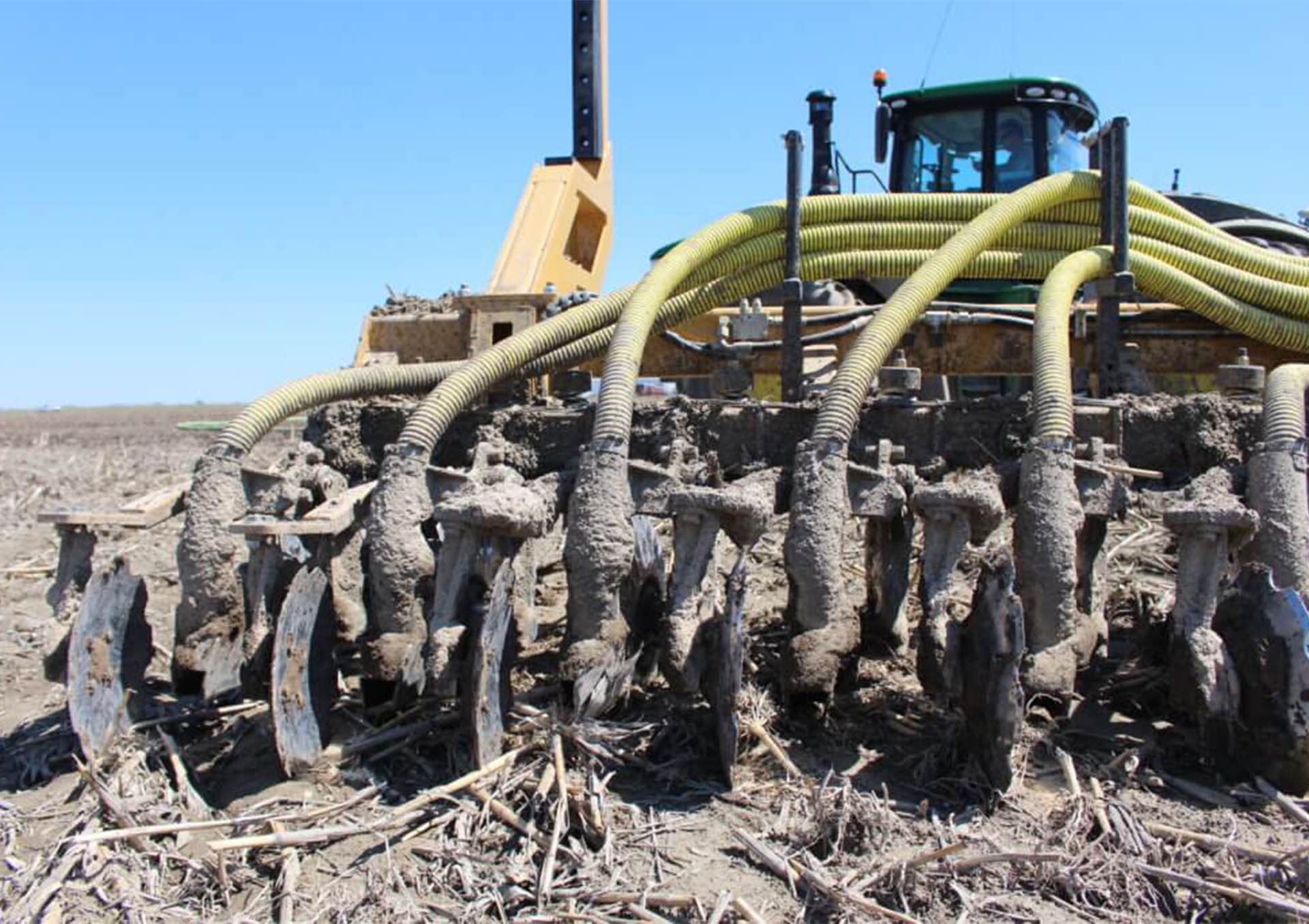

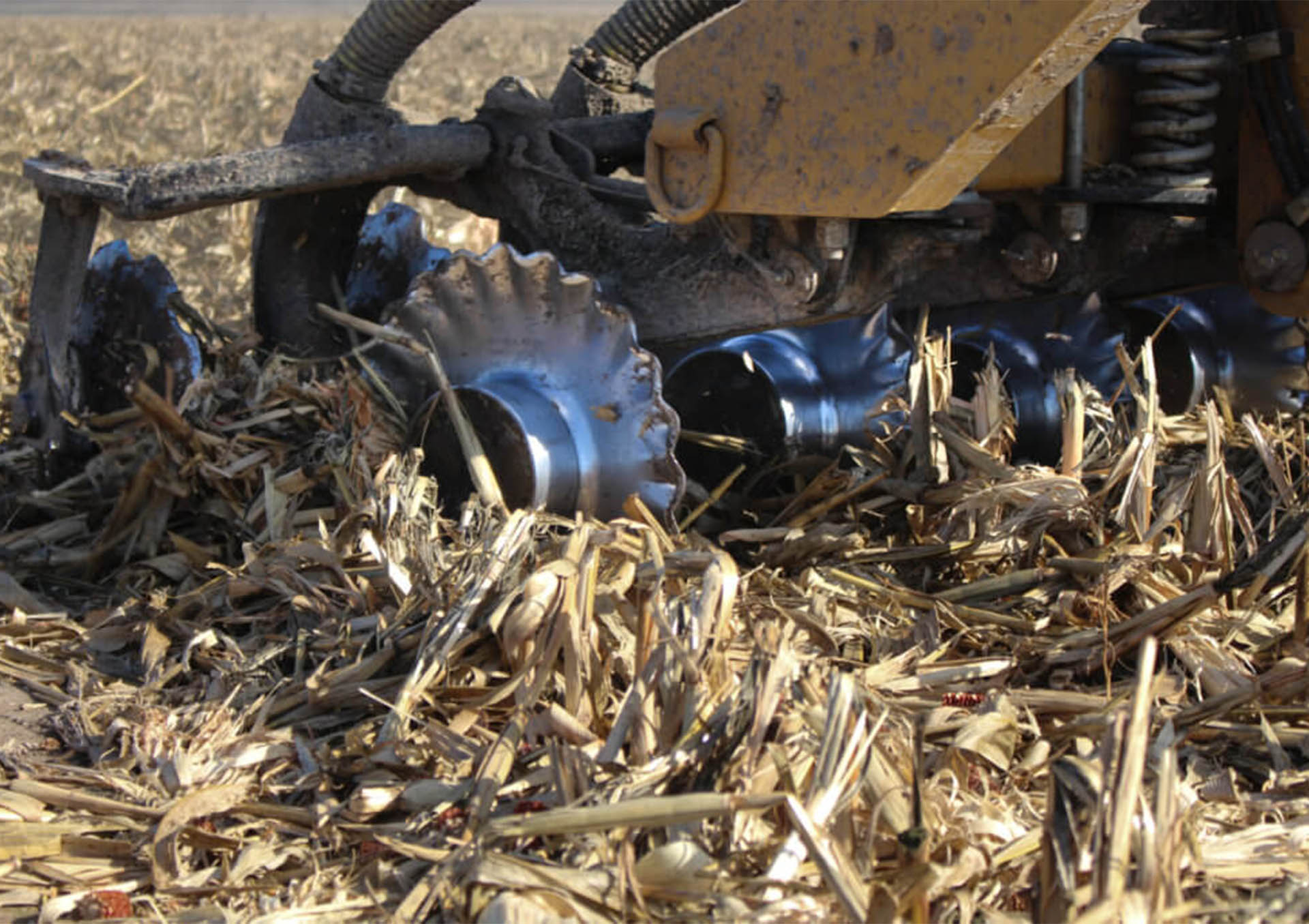

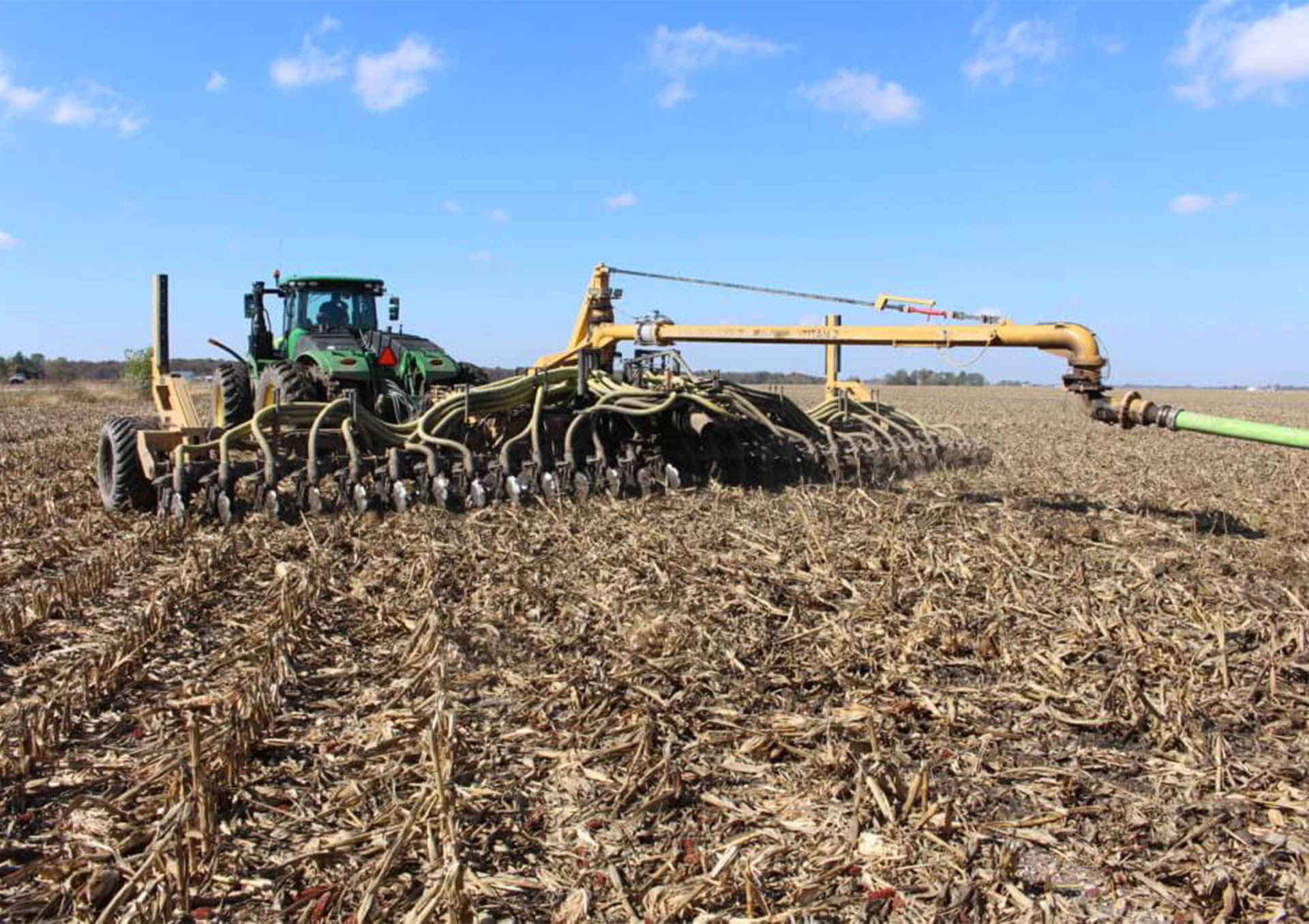

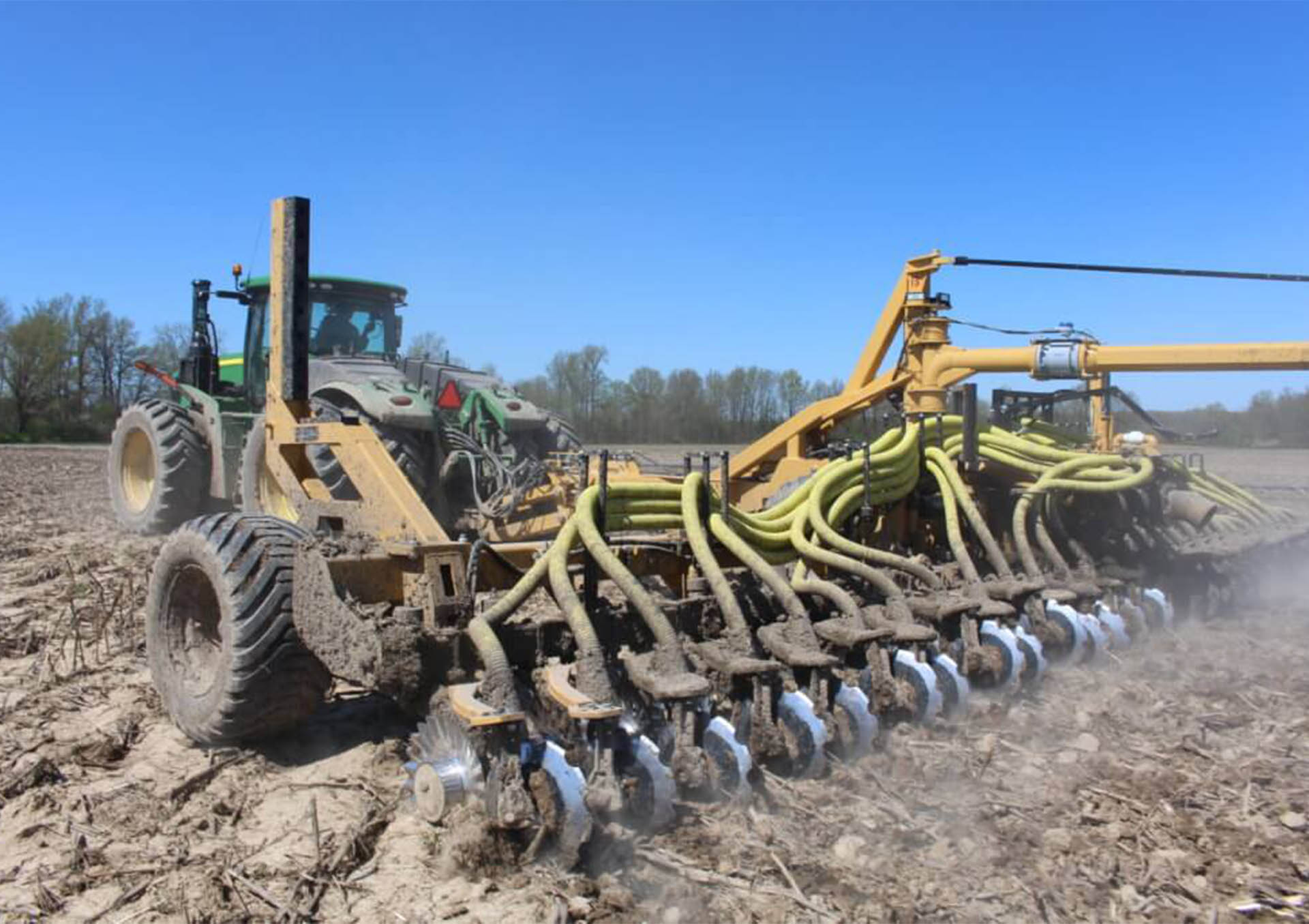

The Phantom Edge Injector was designed to penetrate harder ground and cut a larger trench to place larger volumes (2.5K – 20K+) of liquid manure into the ground. Built off of our proven Phantom unit, the Phantom Edge is environmentally smart while delivering versatility to high and low gallon per acre customer demands. It’s your powerful, all-in-one solution.

Advantages

  • Rated for up to 20K+ GPA
  • Performs in hard ground conditions
  • Even distribution results in reduced streaking
  • Narrow spacing accommodations
  • Low maintenance design

Download Brochure

Request a Quote Schedule a Demo

Specifications

    • Standard

      • Spacing options:
        • 16″ Toolbars-only
        • 18″ Toolbars-only
        • 20″ Toolbars/ Tank Bars
        • 24″ Toolbars / Tank Bars
        • 30″ Toolbars / Tank Bars

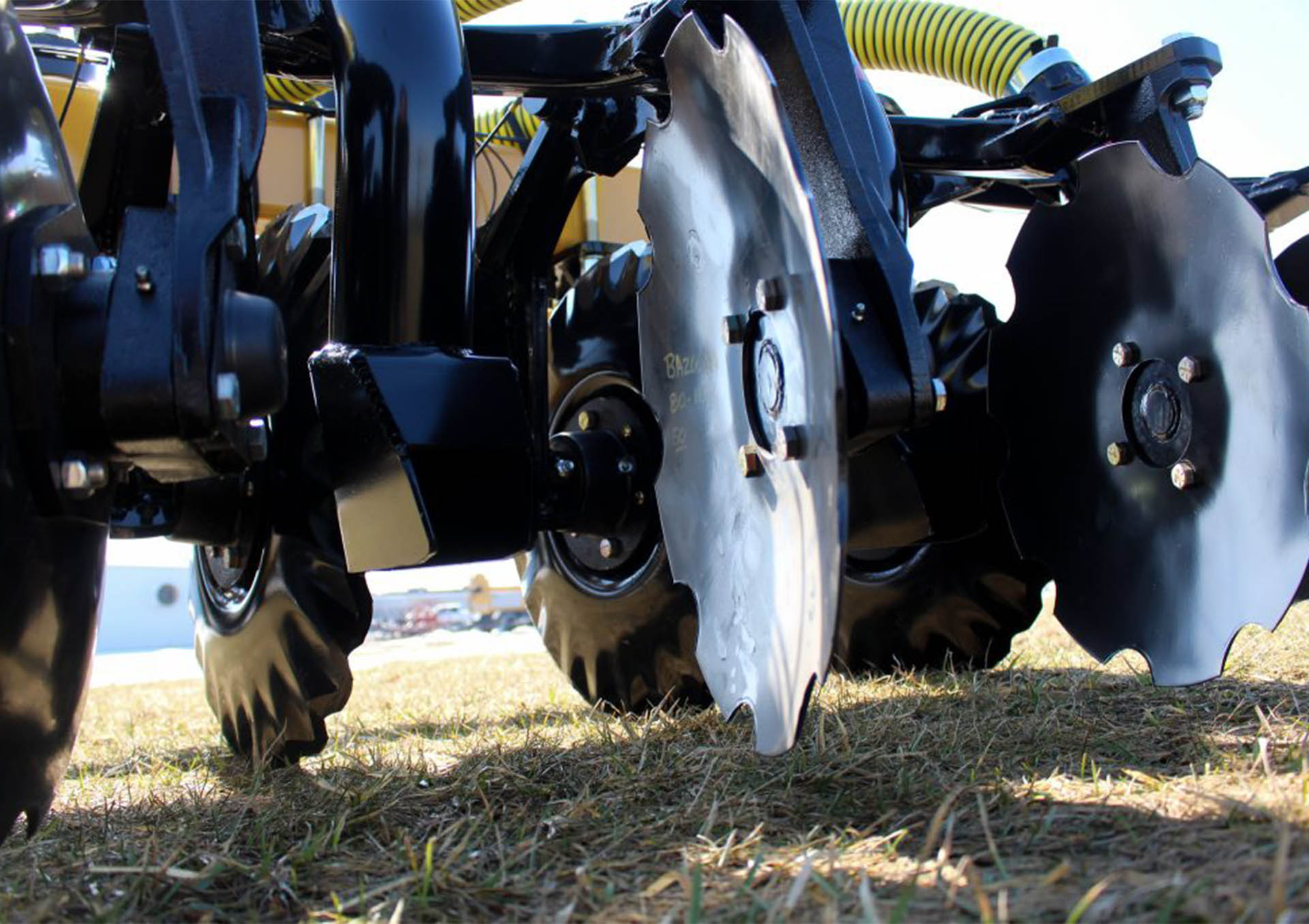

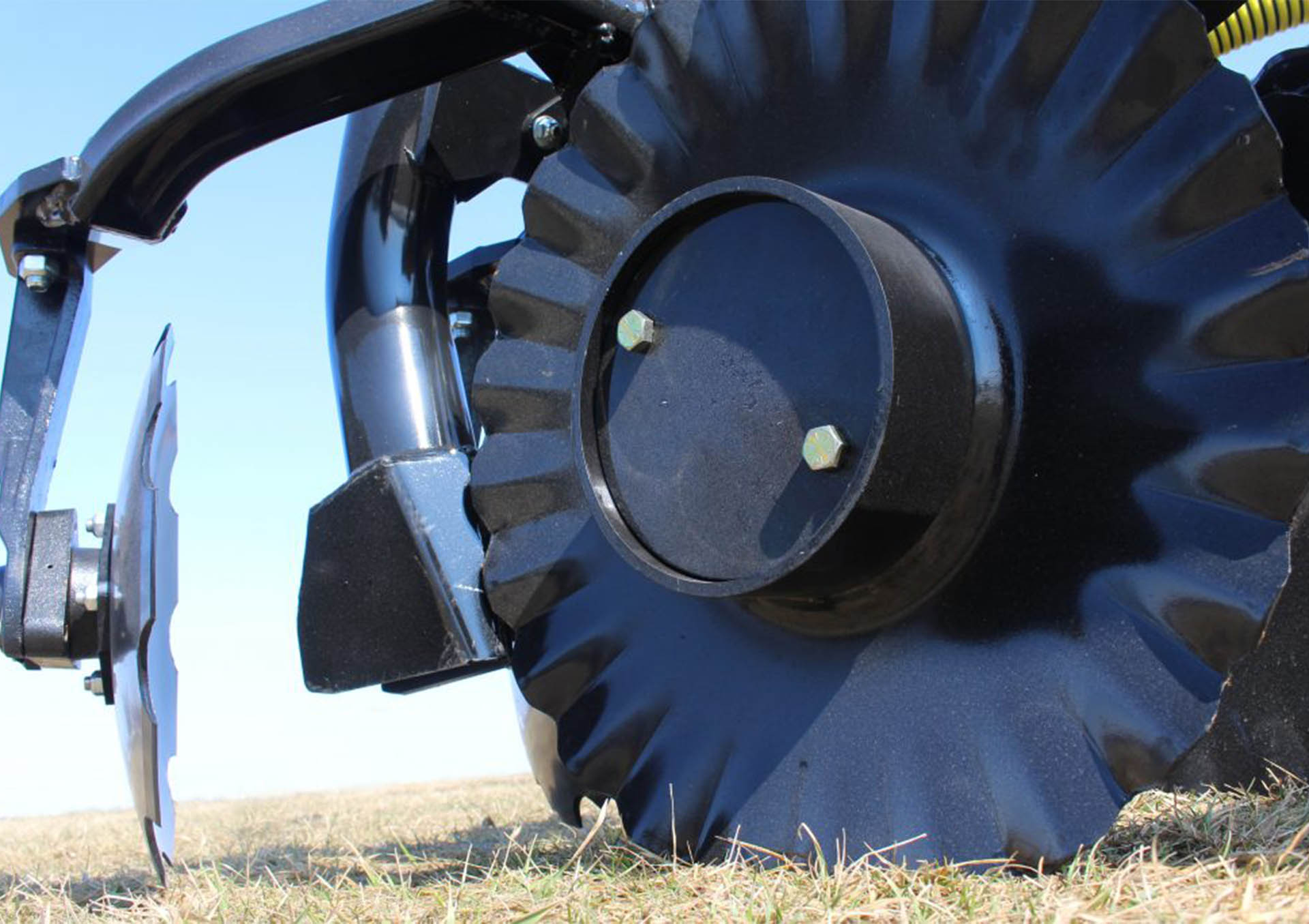

      • Serrated and concave main blade | 22″ diameter
      • Notched and concave closure blade | 18″ diameter
      • 4” – 6″ running depth
      • 6° unit angle – Recommended for Toolbars
      • 4.5° unit angle – Recommended for Tank Bars
      • Depth gauge wheel and cover plate
        Mounting plate
      • Mild steel main arm
      • Cast ductile iron closure mount arm
      • Nickel-plated mount pin w/ hardened steel bushings
      • Bolt-in main hub and spindle
      • Adjustable closure blade angle
      • Adjustable down-force spring
      • 3” drop tube
      • U-bolts
      • Assembly hardware
    • Upgrade Options

      Retrofit kit

      • Upgrading the original Phantom unit to the Phantom Edge design, includes:
        • Opener blade
        • Closure blade
        • Closure arm
