990 Full Throttle Pump Trailer

The power to go further.

The 990 Full Throttle Pump Trailer features a single steel fuel tank with 990-gallon capacity to keep you up and running longer. As the largest fuel capacity Full Throttle option, it comfortably accommodates the largest horsepower engines we offer as well. In other words: it’s a beast.

Advantages

  • Increased productivity
  • Longer run time
  • Long-lasting solution that withstands the elements

Download Brochure

Request a Quote Schedule a Demo

990 Full Throttle

Specifications

    • Standard

      • Gross weight: 7,000 lbs. (Does not include engine, pump, plumbing, or fuel)
      • Empty tongue weight: 1,200 lbs.
      • Full tongue weight: 4,900 lbs.
      • Length: 25′ 4″
      • Width: 8′ 4.5″
      • Deck Height: 3’ 4”
      • Approximate overall Height: 11′ 5″ (Will vary based on engine selection)
      • Ground clearance – 11″

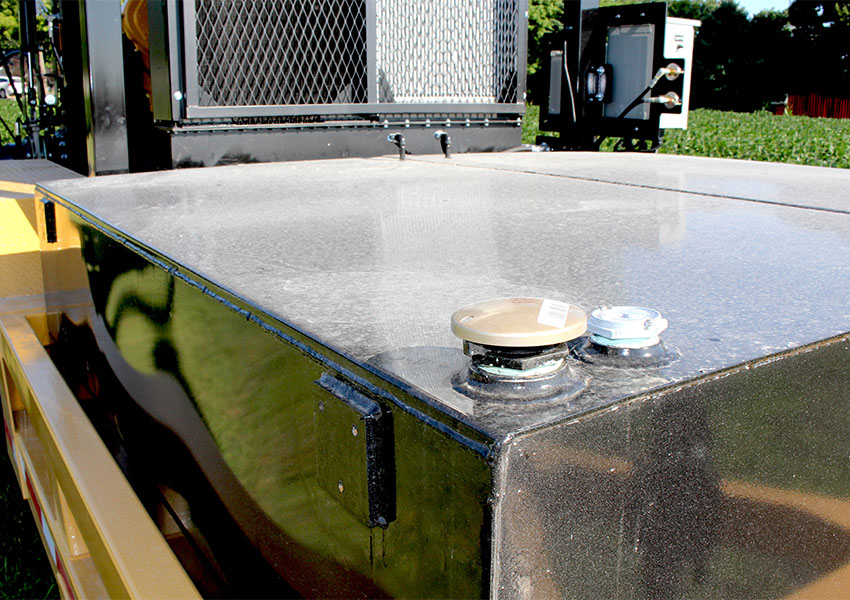

      • Single, 990-gallon capacity steel fuel tank w/ baffles and sump area
      • [2] 15,000 lbs. leaf spring axles
      • [4] Used super single tires
      • Fenders
      • DOT Lighting
      • 10,000 lbs. manual tongue jack
      • Rear receiver hitch with trailer plug
      • Front pintle hitch
    • Standard Options

      • Tier 4 Final CAT, Cummins, or JD engines
      • Cornell Pumps
      • Plumbing and valves
        • Hydraulic stainless steel knife gate valves
        • Pig launcher and/or bypass plumbing
    • Upgrades

      • Nexus Electronic Pump Controls
      • ECS Pump Controls
      • Trailer tongue toolbox (48″ x 18.5″)
      • [4] New super single tires
      • [4] Flotation tires (550 series 45-22.5)
      • [4] LED floodlights
      • 12,000 lbs. hydraulic tongue jack
      • Electric over hydraulic brakes
      • 6” Krohne Flowmeter and cables
      • 8” Krohne Flowmeter and cables
      • Front bull pull hitch
      • Hydrostat wet kit with 5,000 PSI hook-up for submersible pump
      • [2] Hydraulic downriggers (Specify front or back of the trailer)
      • [4] Hydraulic downriggers

Models

    • 302-0030

      990-Gallon Pump Trailer

TECHNOLOGY THAT WORKS SMARTER, NOT HARDER.

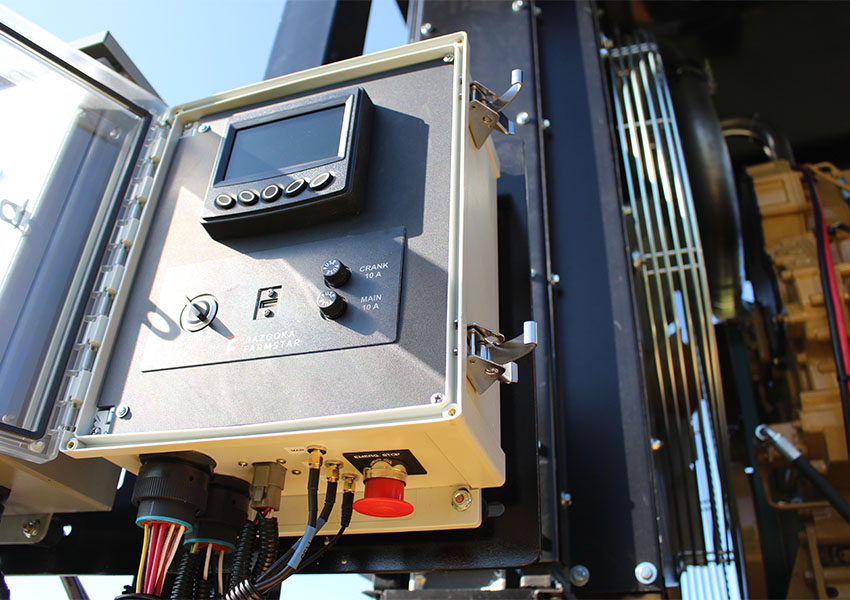

Nexus is the ultimate in electronic engine control. You can take control of your pumping operation(s) from essentially anywhere.

Learn More

Nexus pump control
