Titan 2 Toolbar

Bigger toolbar. Bigger productivity.

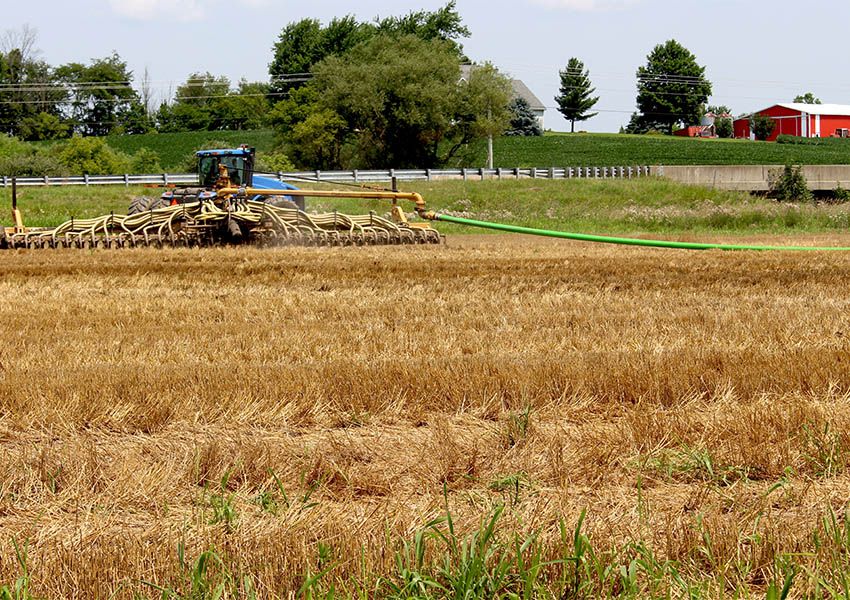

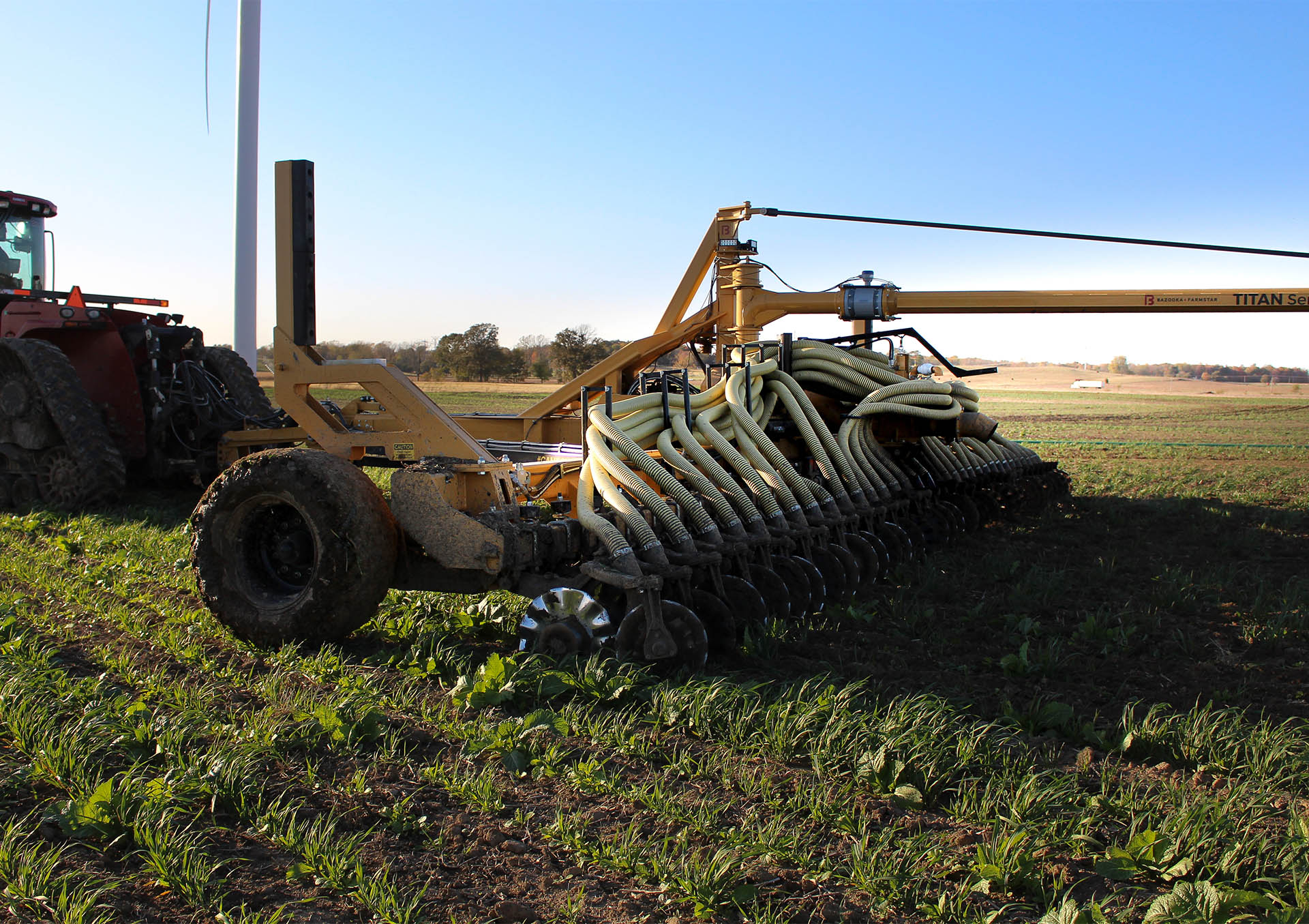

The Titan 2 Toolbar is our largest front-folding liquid manure injection toolbar engineered to execute pass after pass. It’s the cream of the crop when it comes to making full, effortless turns in the ground, continuously injecting liquid manure into the ideal root zone. When it comes to going big or going home, with the Titan 2 Toolbar, we went big. Literally, this toolbar comes in models up to 60’ wide.

Advantages

  • Reduce downtime
  • Exceptional ground penetration = Less surface liquid manure
  • Low maintenance design
  • Improved strength over Titan 1

Download Brochure

Request a Quote Schedule a Demo

Titan 2

Specifications

    • Standard

      • 700 series center section flotation tires
      • 550 series gauge wheel flotation tires

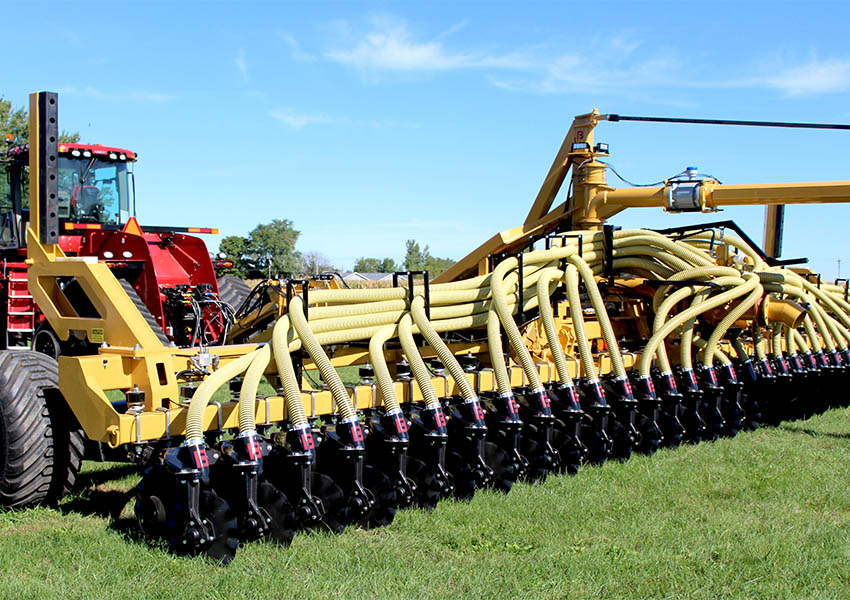

      • Phantom 1 or 2 injection units
      • Visual on/off lights for mainline shut-off valve and pig discharge
      • Manifold clog indicator light
      • One remote transmitter for hydraulic functions
      • 8″ swing arm with sweeping 90° elbows
      • 6” pipe swivel
      • 6″ hose swivel

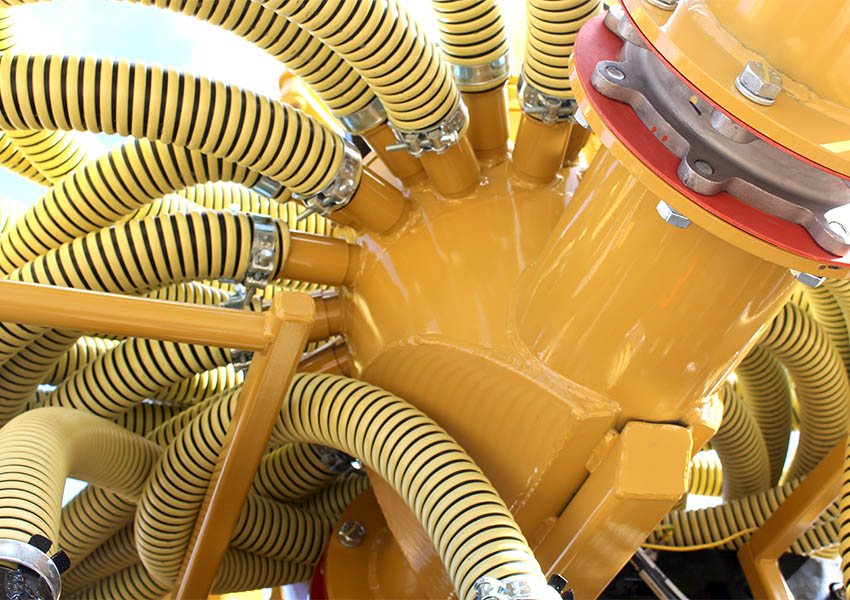

      • 8″ Flux manifold

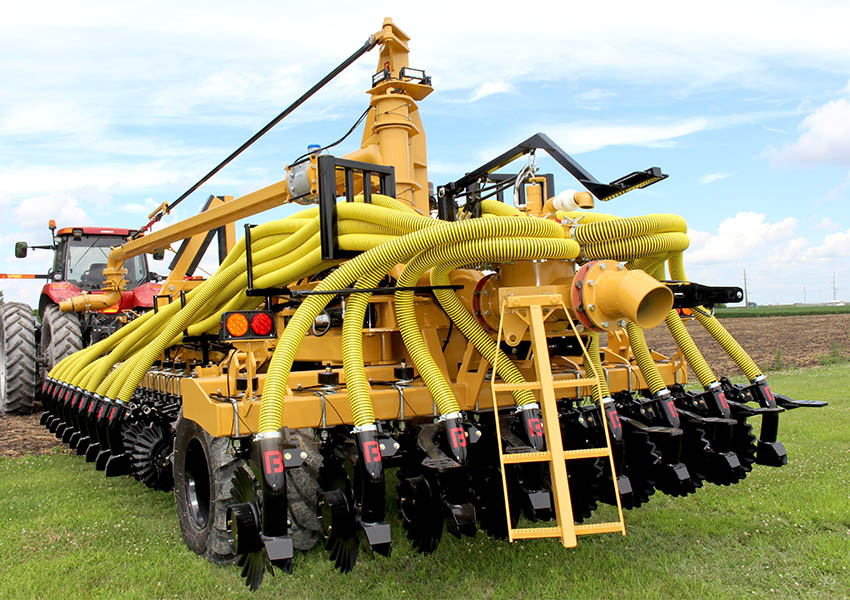

      • Rear ladder for easy access to the inside of the manifold
      • 8” Krohne Flowmeter & cables
      • Toolbars shorter than 48′ receive [2] 36.5′ & [2] 24′ cables
      • Toolbars 48′ and wider receive [4] 36.5′ cables
      • Gas strut manifold lift assist handle
      • Stainless steel knife gate valves
      • 3″ Bumblebee hose

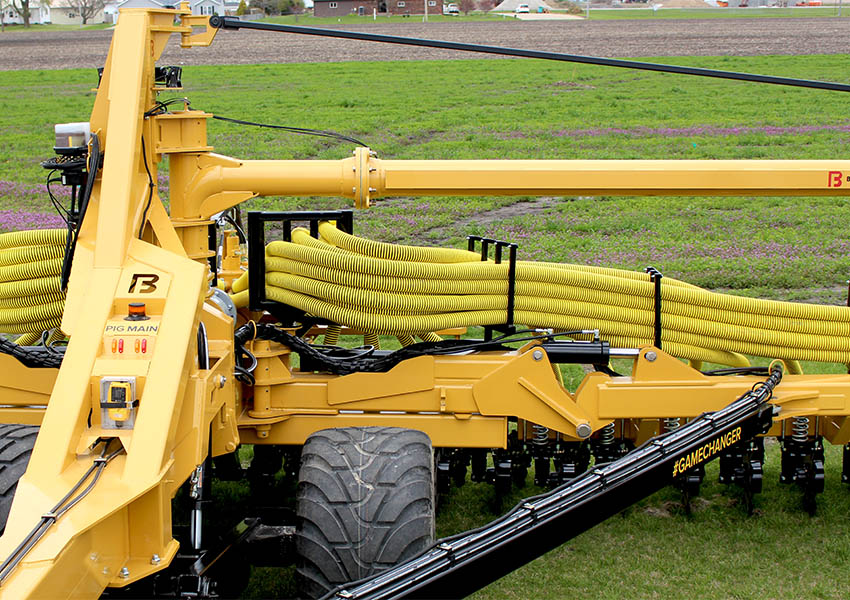

      • Automatic grease system
      • CAT 4 bull pull hitch
      • [3] LED tower work lights
      • DOT lighting
    • Upgrades

      • 8″ hose swivel
      • CAT 5 bull pull hitch
      • John Deere Harvest Lab 3000 Swing Arm Mount Extension
      • Phantom Edge Injection Units
    • Deducts

      • 8″ swing arm and plumbing to 6″ swing arm with sweeping 90 degree elbows and plumbing
      • 3″ to 2.5″ Bumblebee hose

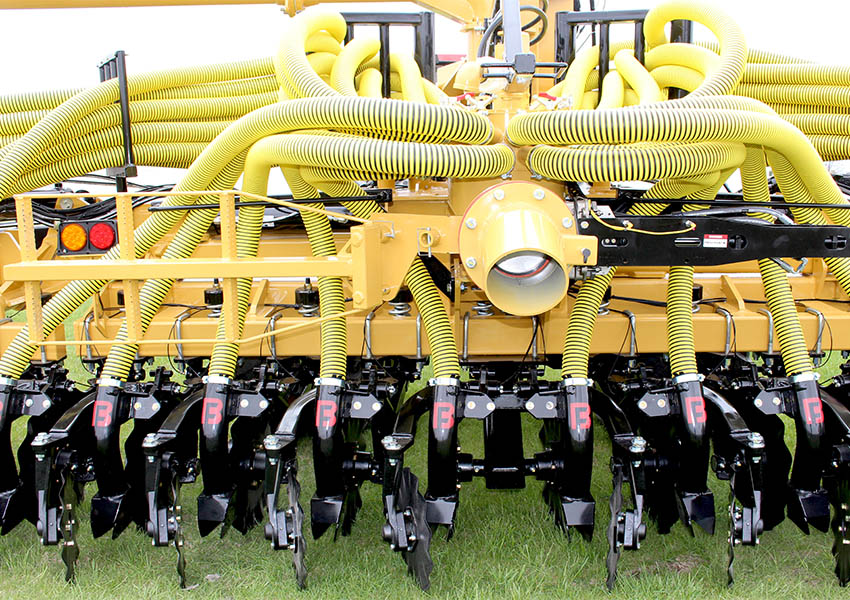

Models

    • 16″ Spacing

      40’

      • 30 Phantom Units

      42’

      • 32 Phantom Units

      45’

      • 34 Phantom Units
    • 18″ Spacing

      39’

      • 26 Phantom Units

      42’

      • 28 Phantom Units

      45’

      • 30 Phantom Units

      51’

      • 34 Phantom Units
    • 20″ Spacing

      40’

      • 24 Phantom Units

      44’

      • 26 Phantom Units

      47’

      • 28 Phantom Units

      50’

      • 30 Phantom Units
    • 24″ Spacing

      40’

      • 20 Phantom Units

      48’

      • 24 Phantom Units

      52’

      • 26 Phantom Units

      60’

      • 30 Phantom Units
    • 30″ Spacing

      45′

      • 18 Phantom Units

      50′

      • 20 Phantom Units

      60’

      • 24 Phantom Units

PRECISE & POWERFUL MANURE INJECTION

No liquid manure left behind. No hesitation that our Phantom Injectors are the best liquid manure injection solutions out there.

Learn More

Phantom Units
