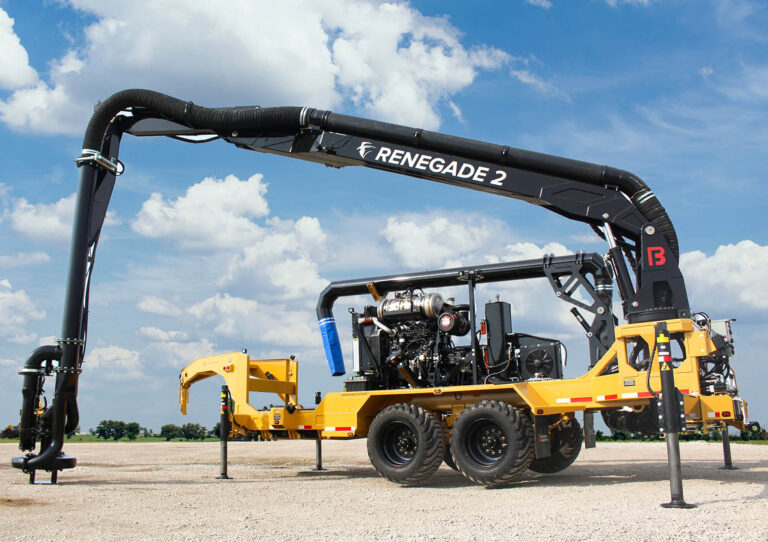

• The Renegade 2 comes standard with a 180 CC hydrostat motor which will reach a GPM of up to 4,000 when paired with a 250 HP or 310 HP engine and 18” Bazooka Farmstar submersible pump. When equipped with the upgraded hydrostat package, 4,500 GPM is possible.

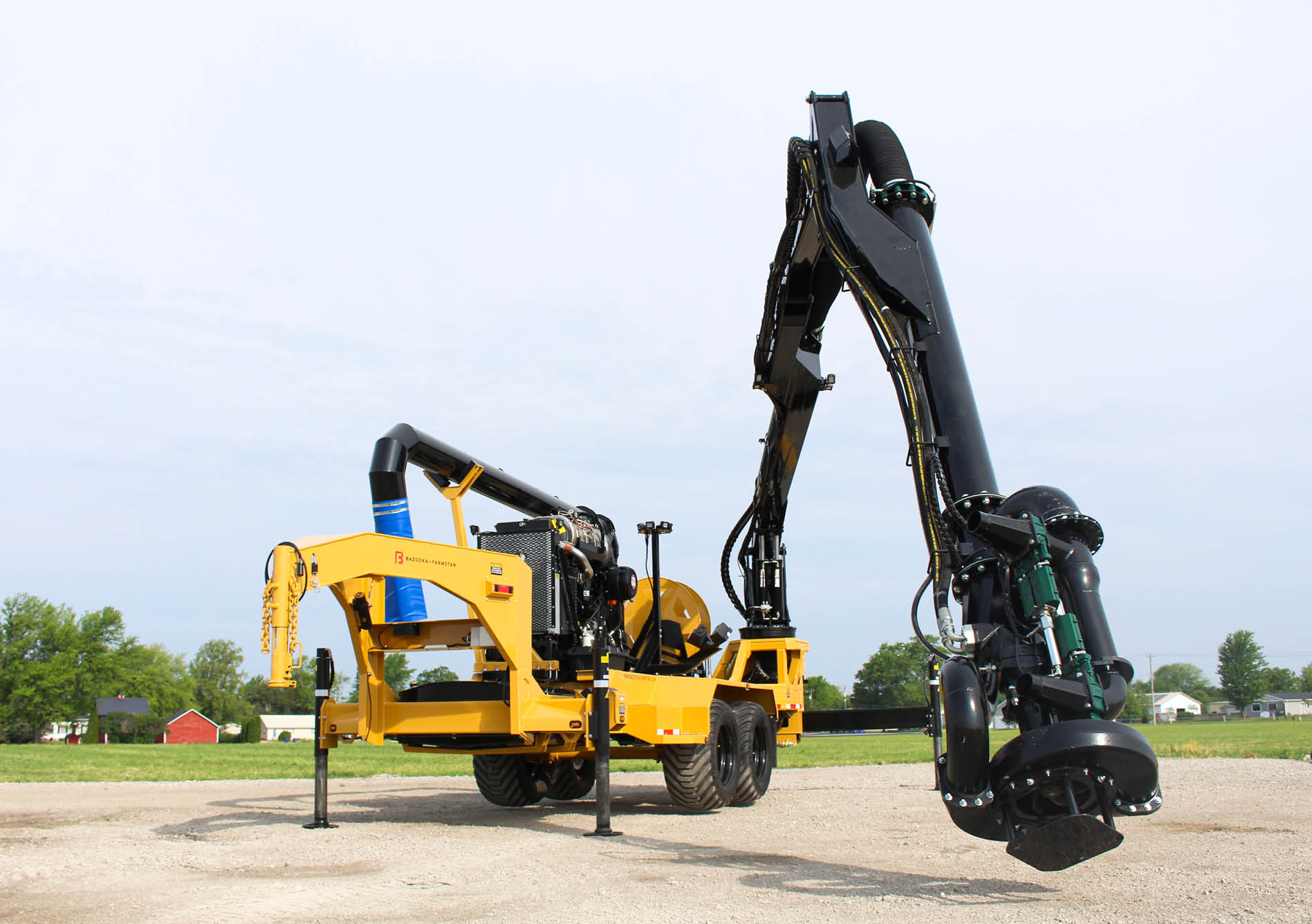

• The high-performance 18″ white iron Bazooka Farmstar submersible pump features a heavy-duty bearing housing with no mechanical seal for easy maintenance. You heard that right, no mechanical seal. Our pumps also feature a dual-sealed grease chamber and a 4-bolt quick-access suction cover for next-level maintenance accessibility.

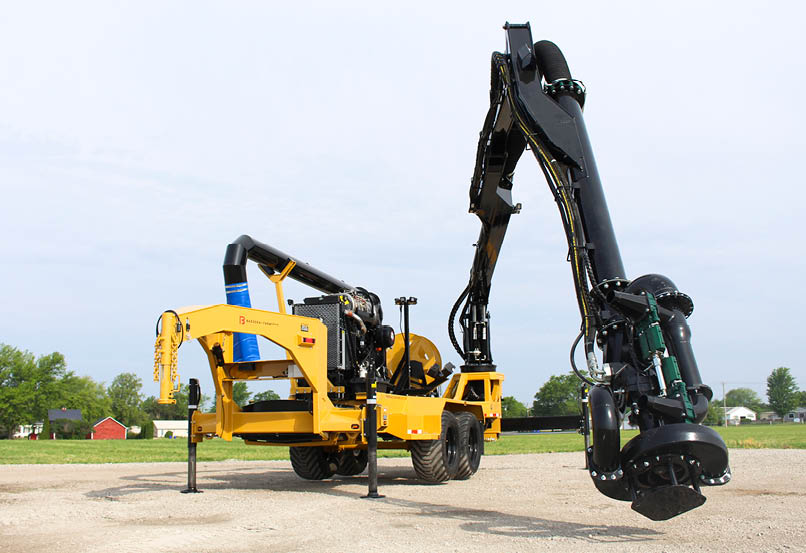

• 10-inch plumbing increases flow and/or reduces power consumption.

The 42′ boom length perfectly fits manure lagoons, “hard to reach” confinement pits, and slurry storage tanks.

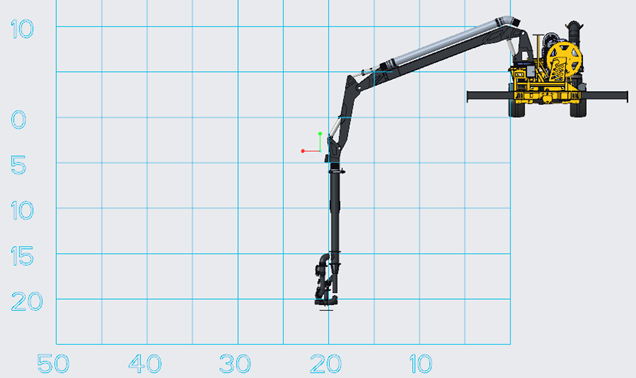

• Max. Depth:  21’ below grade out 19’ from the side of the trailer
• Max. Reach:  41’ from side of trailer at ground level
• Max. Slurry Store Height:  20’ 6”

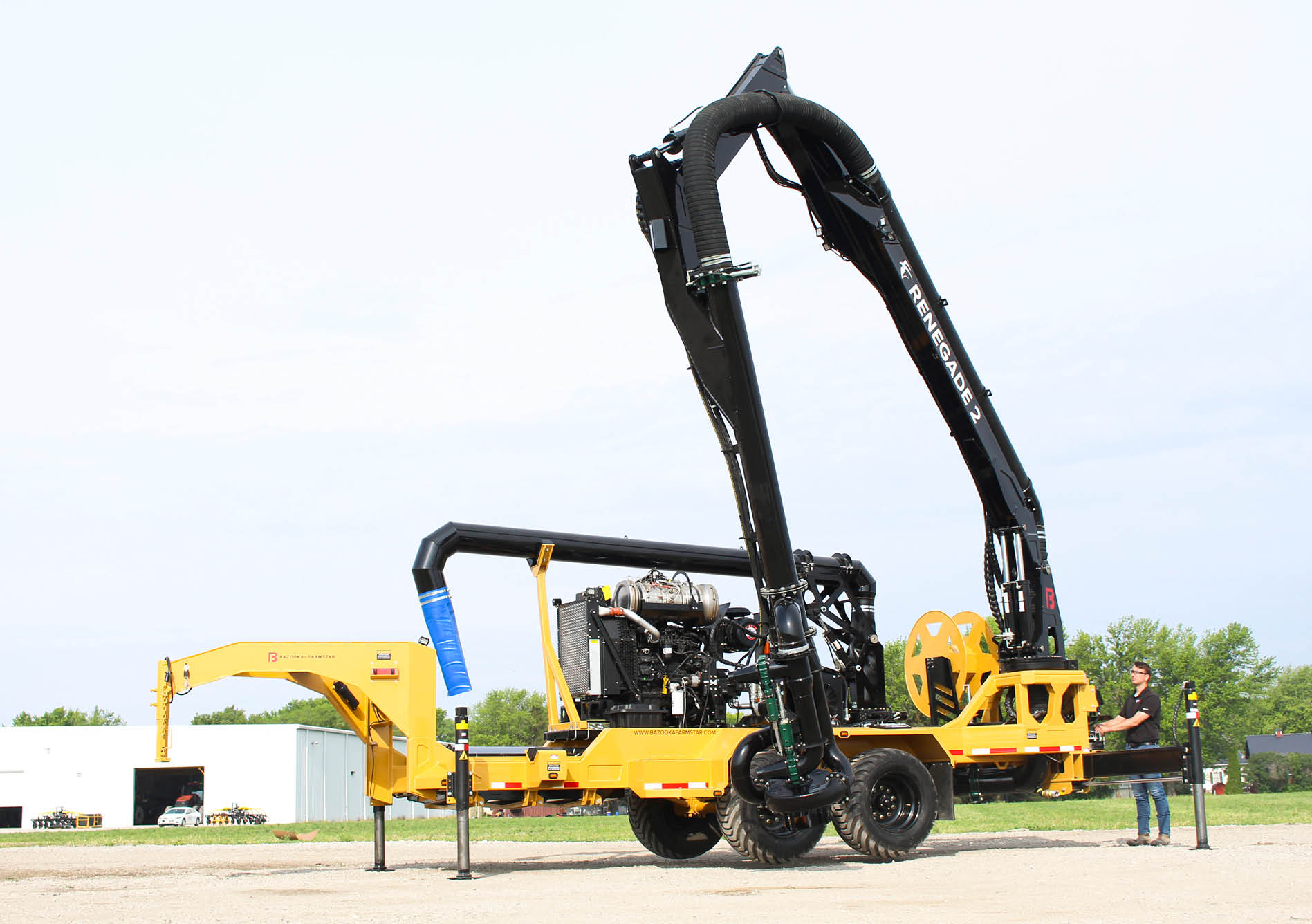

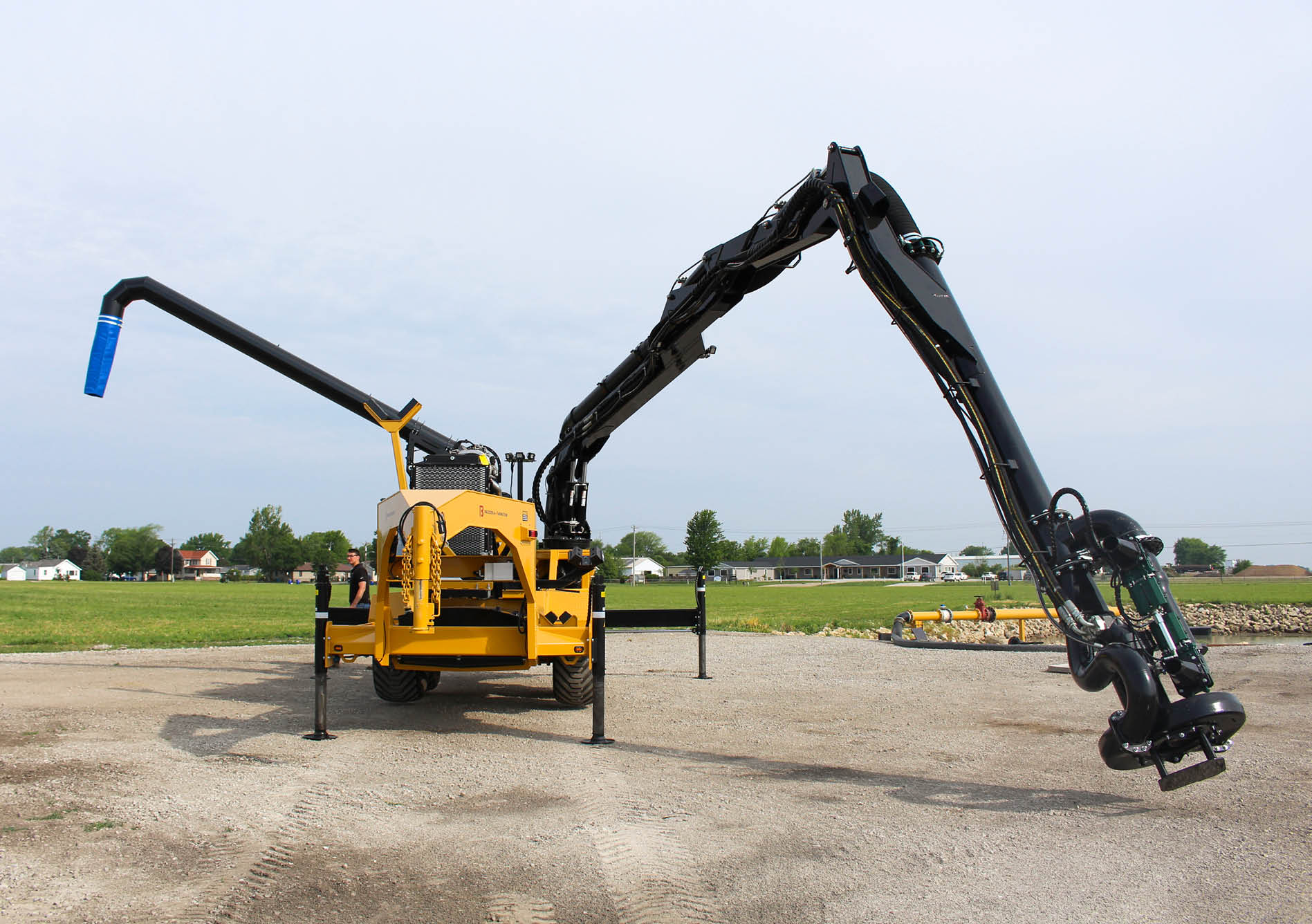

The triple-section boom rotates 270° (180° to the left, 90° to the right), allowing you to set up in one location and pump out multiple pump-outs.

The updated triple-section boom design is easier to maneuver and accurately control. This boom design provides flexibility in placing the boom in the manure pump out.

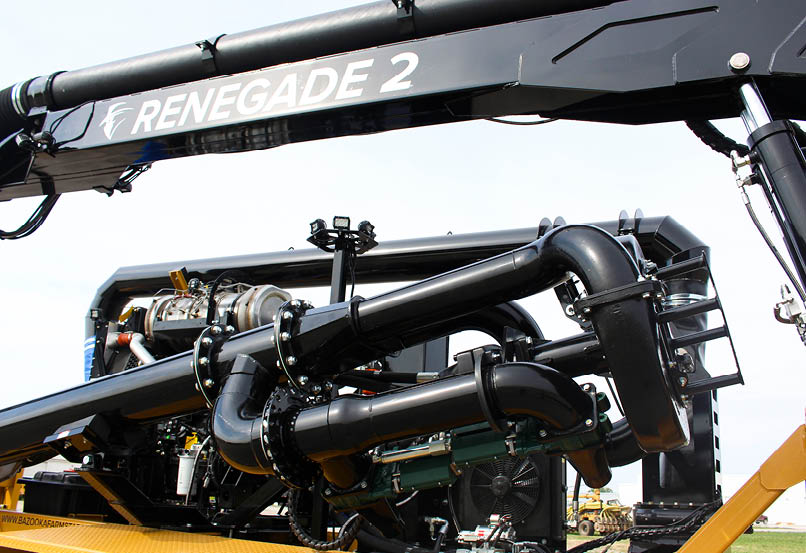

Dual, rotating agitation nozzles provide agitation while pumping. Keep one or both nozzles open while pumping to continue agitation.

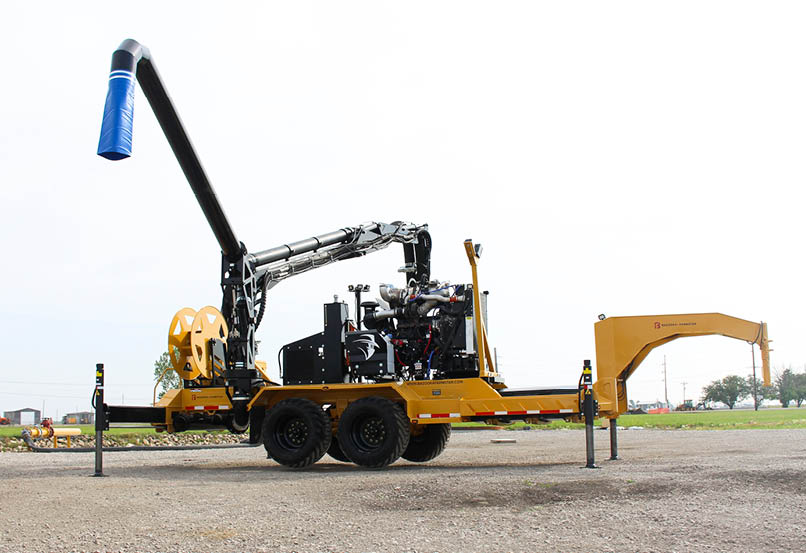

The 12” diameter load stand increases your loading speed while reducing foaming. Plus, the boom integration keeps operators safer by reducing the amount of equipment needed to get the job done.

The boom remote can control the load stand for easy and precise placement of the fill pipe, and the tank fill remote fob can speed up the tank filling process by allowing operators to switch from agitation to fill mode without leaving the cab.

Maximum Fill Height: 16’ 5”

Maximum Reach Off the Passenger Side: 15’

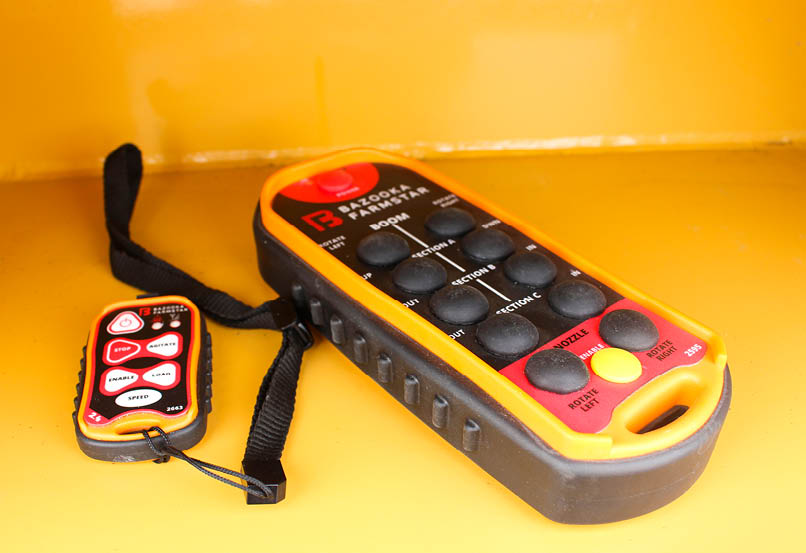

With our optional rechargeable remote controls, you can place the pump and operate the agitation, pump, force-feed, and tank fill functions without leaving your truck or tractor cab. Talk about convenience.

• We also offer tank fill remote fobs that allow each tank operator to remotely switch from agitate to fill mode without shutting down or leaving their tractor cab when they pull up under a load stand. And guess what? There’s no limit to how many fobs you can connect to one Renegade. You can thank us later.

• The boom remote controls all boom movement functions. (Up, down, in, out, and left/right nozzles) Not only that, but the buttons on the main remote are proportional, so the more pressure you apply, the quicker the function occurs. Proportional functionality allows you to work safely by having extreme control over your Renegade.

This pump trailer is designed with safety and convenience in mind.

• High-ground clearance trailer design
• Four hydraulic downriggers for stability. The rear set extends out 60”

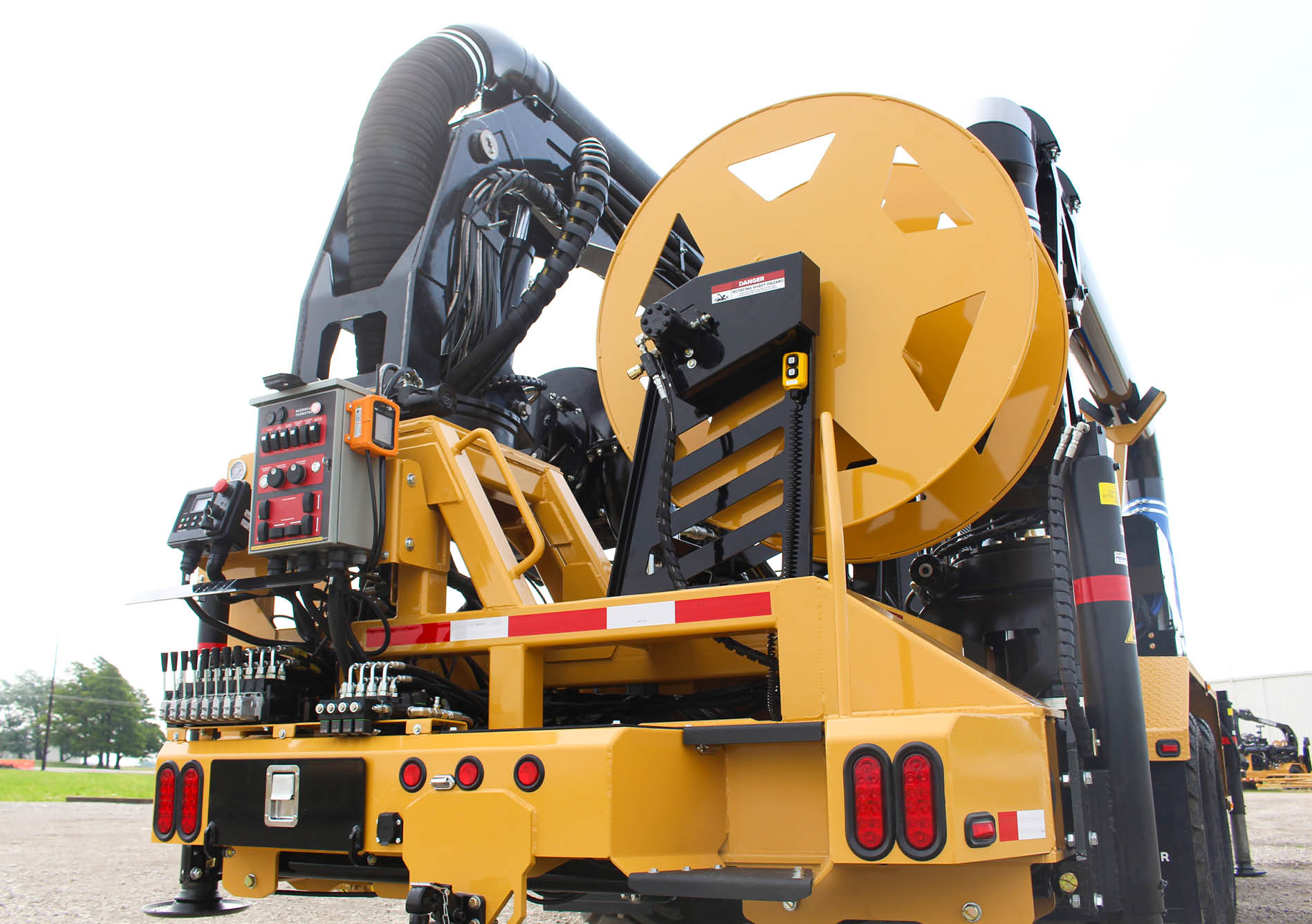

• All controls are located in the rear of the trailer
• Gooseneck or bumper hitch options
• Mounted hose reel upgrade for 100’ of 10” hose

Set up and take down without starting the engine. The 12V DC hydraulic pump will automatically operate the discharge gate valves and outriggers when the engine is not running. The electric pump also provides backup hydraulic flow for the emergency operation of the boom.
