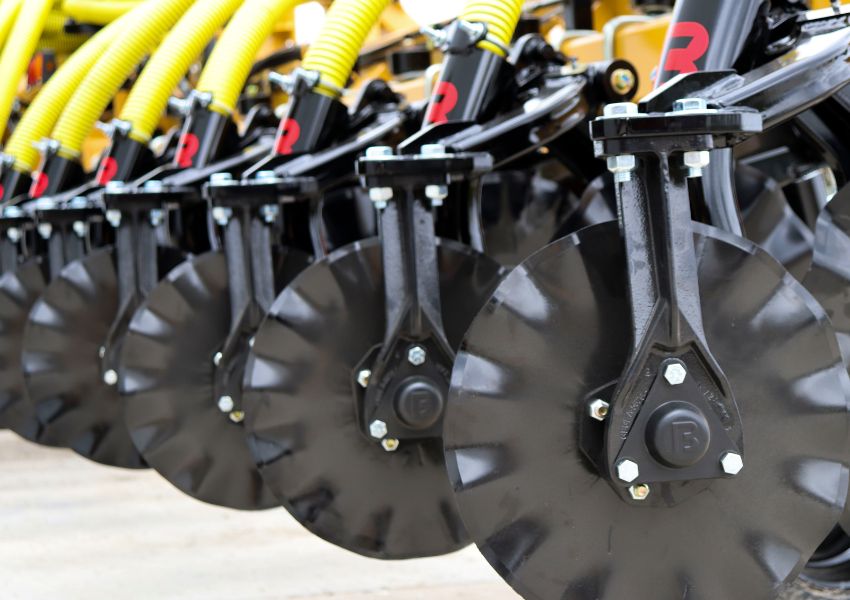

The new Phantom 1XR features a hardened, nickel-plated floating main pin with increased diameter for superior wear resistance. Steel tension bushings provide replaceable wear components between the pin and welded parts, protecting expensive weldments. Stainless steel thrust washers prevent wear on the faces of expensive welded components, while the greaseable main arm collar extends the life of the pin and bushings. Main pin end caps secure the pin while allowing removal from either side for easier maintenance.

The Phantom 1XR features a heavy-duty U-bolt drop tube retention system that replaces failure-prone hose clamps for more reliable performance and easier hose removal.

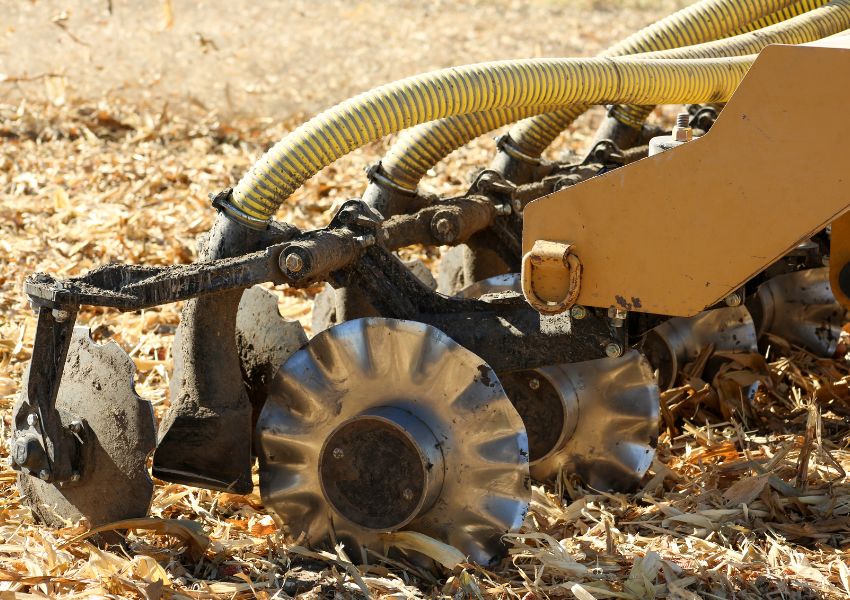

Phantom 1XR features a nickel-plated replaceable closure pin with increased diameter for improved wear properties. Steel tension bushings protect expensive welded parts with replaceable wear components, while the greaseable closure arm collar extends pin and bushing life. Set screw bolts prevent closure shaft rotation and reduce wear due to unwanted movement, while a redundant closure retainer bolt provides fail-safe attachment of the closure pin.

The Phantom 1XR Closure Spring Kit represents a complete redesign of this critical component, featuring a significantly stronger spring with an innovative swivel hook design on both ends that prevents misalignment and binding while reducing stress during operation. This engineered solution keeps the closure blade in constant contact with the ground for more consistent trench coverage, and on tank bars, returns the closure to its working position when wings are folded and unfolded.

Phantom 1XR units maintain the same proven application capacity, achieving GPA rates from 2,500 to 15,000. GPA rates will be dependent on unit spacing, ground conditions, type of liquid manure, etc.

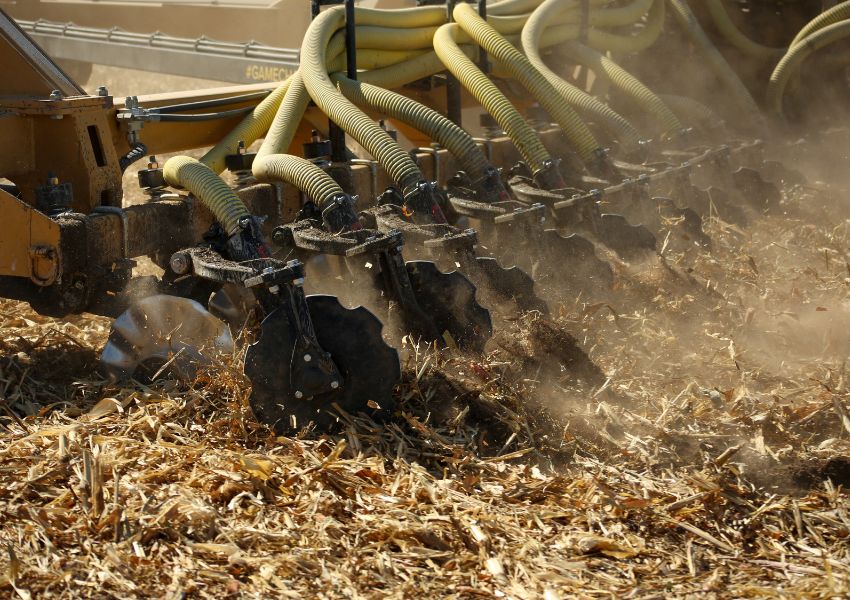

Each Phantom 1XR unit continues to move individually from one another, allowing thorough coverage on various field conditions. Whether you’re running on rocky terrain, corn trash, chopped corn silage, bean stubble, hay ground, or cover crops, the Phantom Injector produces a grade-A performance, now with enhanced durability.

The Phantom 1XR Injector maintains full compatibility with Bazooka’s toolbars and tank bars, with convenient spacing options as narrow as 16″.

This trusted feature continues to help with the Phantom 1XR’s ability to seal the liquid manure into the ground and reduces the amount of liquid manure discharged above ground, resulting in greater nutrient absorption and odor control.

The Phantom 1XR unit maintains the same precise injection system, placing liquid manure into the ground so precisely that you might not even be able to tell it went through the field (hence its name). Minimal soil disturbance allows the ground to maintain its topsoil profile, reducing erosion, streaking in the field and liquid manure runoff.

Have high gallon per acre (GPA) demands? We’ve got you covered. The powerful Phantom Edge can achieve 20,000+ GPA while also delivering high-level performance at lower rates, too. It’s the best of both worlds.

Featuring a serrated and concave 22″ diameter main blade, the Phantom Edge effortlessly penetrates harder-than-usual ground conditions and provides the ability to cut a larger ‘trench’ to hold higher volumes of liquid manure. The Phantom Edge unit does create more ground disturbance than the original, while creating less disturbance than a traditional high-rate injection solution.

The Phantom Edge is also equipped with a notched and concave 18″ diameter closure blade that has been placed on a strengthened and repositioned closure arm. This blade setup rolls the dirt back over the ‘trench’ for thorough coverage.

The Phantom Edge injects liquid manure into the ground so precisely that you might not even be able to tell it went through the field (hence its name). Minimal soil disturbance allows the ground to maintain its topsoil profile, reducing erosion, streaking in the field and liquid manure runoff.
