Move more water with fewer pumps. Bazooka is a distributor of Gollmer & Hummel’s Hilcoflex TPU layflat hose, from 4″ lines up to 14″, for frac water supply, produced water, and other oil & gas water transfer jobs. G&H has been manufacturing hose in Europe since 1872. Order it pre-loaded on a Bazooka Rogue or Warrior reel and your crew can start laying line the day it arrives.
The largest-diameter frac hose on the market, plus a high-pressure 12″ line you won’t find anywhere else. Bigger lines mean less friction loss, fewer pumps, and longer runs.
Exclusive to Gollmer & Hummel and Bazooka Technology, we offer the only tested 12″, 600 PSI burst TPU on the market. This HP hose allows operators to:
This industry-leading hose provides the capacity to pump over 4 miles on flat ground at 100 bbls/min. with a single pump. This 14″ hose also allows operators to:

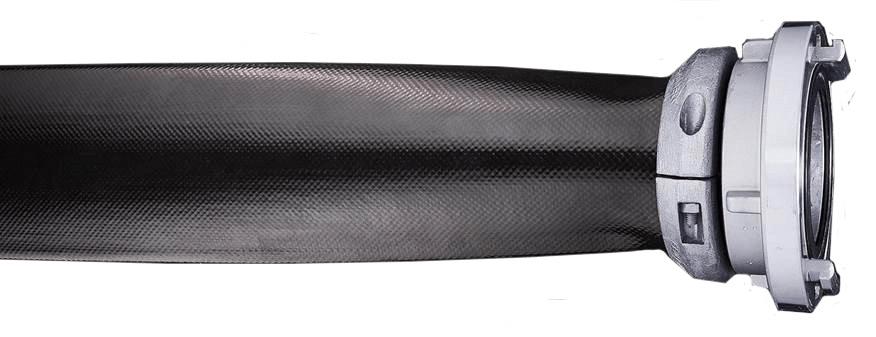

G&H LAYFLAT HOSE LINING AND COVERS are crafted with Thermoplastic Polyester Polyurethane TPU and are extruded “through the weave” in the manufacturing process to ensure a high-quality product.
| BORE SIZE | WEIGHT | WALL THICKNESS | MAX. WORKING PRESSURE | BURST PRESSURE | BREAKING STRENGTH |
|---|---|---|---|---|---|
| [in. | mm.] | [lbs./ft. | gr./m.] | [in. | mm.] | [psi] | [psi] | [lbs. | kg.] |
| 4″ | 102 | 0.77 | 1,150 | .12″ | 3.3 | 200 | 750 | 30,500 | 13,800 |
| 6″ | 154 | 1.27 | 1,900 | 0.14″ | 3.7 | 200 | 750 | 39,500 | 13,800 |
| 8″ | 205 | 2.08 | 3,100 | 0.17″ | 4.5 | 200 | 600 | 83,800 | 38,000 |
| 8″ HP | 205 | 2.41 | 3,600 | 0.20″ | 5.1 | 250 | 750 | 99,300 | 45,000 |
| 10″ | 254 | 2.82 | 4,200 | 0.20″ | 5.1 | 200 | 600 | 99,300 | 45,000 |
| 10″ HP | 254 | 2.95 | 4,400 | 0.21″ | 5.3 | 250 | 750 | 108,000 | 49,000 |
| 12″ | 305 | 3.52 | 5,250 | 0.21″ | 5.3 | 150 | 450 | 121,300 | 55,000 |
| 12″ HP | 305 | 3.76 | 5,600 | 0.23″ | 5.8 | 200 | 540 | 145,500 | 66,000 |
| 14″ | 356 | 4.5 | 6,700 | 0.23″ | 5.8 | 125 | 375 | 134,500 | 61,000 |
On behalf of the manufacturer, GOLLMER & HUMMEL:
We offer a variety of layflat hose to fit all of your water transferring needs. Our trusted brand offers hose that can be easily maneuvered around rough terrain without bracing and can withstand air temperatures of up to 160 degrees Fahrenheit.
