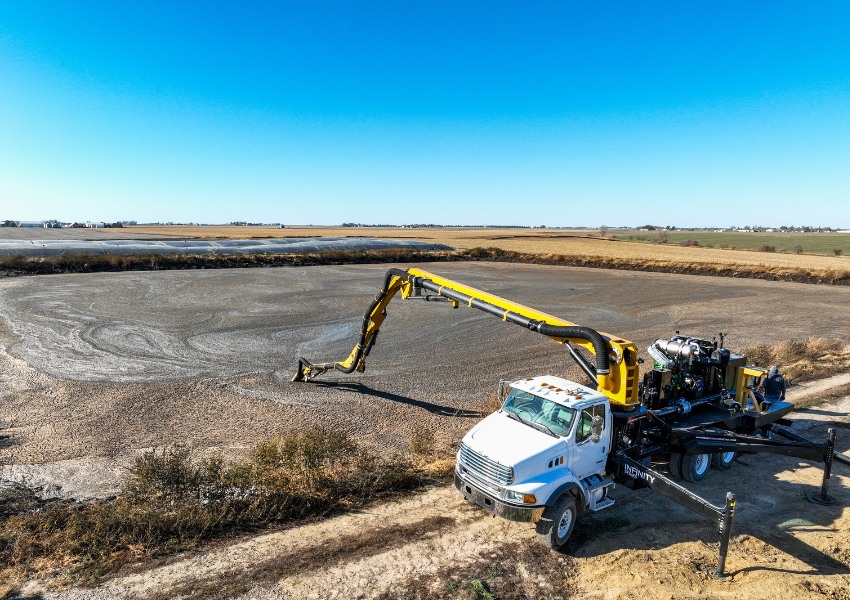

With four boom sections and an 85–foot reach, our Infinity Boom Truck allows easy access to even the toughest pump-outs. Park between hog buildings and easily reach either side. Reach deep lagoons up to 51 feet below grade when positioned just 32 feet from the edge. A heavy–duty slew ring allows 270 degrees of boom rotation. No job is out of range with the Infinity Boom Truck’s immense reach and superior maneuverability.

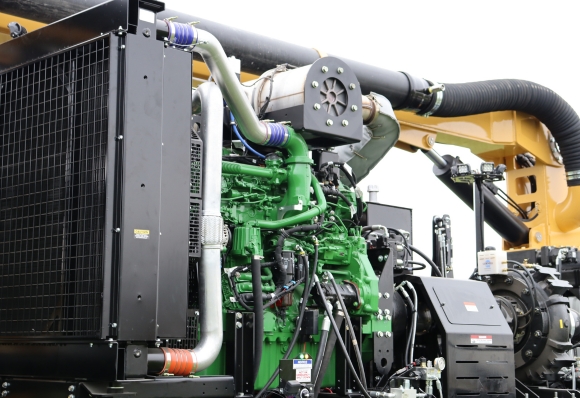

Our engine and pump packages, paired with the 18″ white iron Bazooka Farmstar submersible pump, offer several options for maximum performance. Our standard pump and engine package will offer up to 3750 GPM. Higher flow packages are available.

The Bazooka Farmstar submersible pump provides efficient performance, featuring dual-port outlets that can move some serious gallons. Our pumps have a heavy-duty bearing housing with no mechanical seal for easy maintenance. You heard that right, no mechanical seal. Our pumps also feature a dual-sealed grease chamber and a 4-bolt quick-access suction cover for next-level maintenance accessibility.

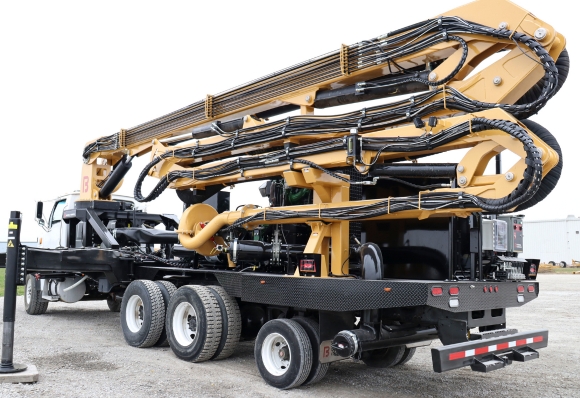

The Infinity Boom Truck features an innovative boom design with 8” -10“ plumbing and no elbow fittings, instead utilizing a flexible hose for maximum flow. By minimizing friction losses, pressure drops, and potential leakage points throughout the system, our unique boom configuration reduces system demands for increased efficiency.

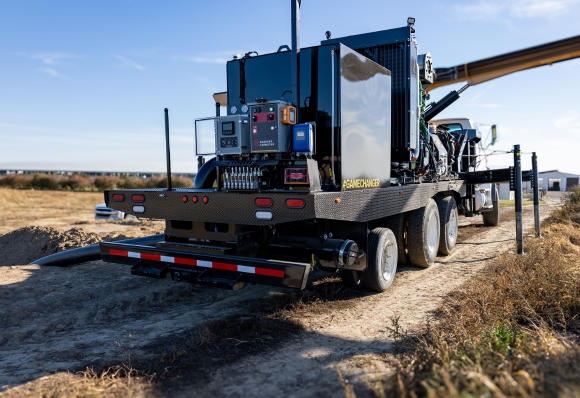

The forward–mounted superstructure transfers loads directly between the outriggers and the boom, bypassing the truck frame entirely. The boom is supported on its own outriggers, reducing the load on the truck frame when the boom is extended. Reconfigured boom and structure better balances weight from left to right and front to rear on the truck.

High–pressure outlets are located away from the operator and pig launching areas to protect the operator from potential hazards. Smooth boom operation is made possible with proportional valves on the boom remote. Outrigger controls in 3 locations for safety and convenience while setting up.

The hard-plumbed boom and outrigger/stabilizer cylinders are equipped with integral-mounted holding or counter-balance valves to prevent sudden cylinder collapse in case of hose or other hydraulic failure.

Easily accessible service points on the boom. Grease bank provides easy greasing to boom pedestal components. Two convenient ladder locations allow quick and easy access to major components.

Our optional rotating agitation nozzle allows you to agitate fluids while pumping at full capacity of 3,000 GPM at 175 PSI. The specially designed nozzle features a 55–degree horizontal rotation range powered by hydraulic cylinder, enabling targeted agitation to prevent solids from settling during pumping. With independent control of the pump and nozzle valve, our system allows pumping while the nozzle is open for continuous agitation.
