• The 32’ Renegade 2 comes standard with a 125 CC hydrostat motor, which will reach a GPM of up to 2,900 when paired with a 173 HP engine and 15” Bazooka Farmstar submersible pump.
• The high-performance 15” Bazooka Farmstar submersible pump features a heavy-duty bearing housing with no mechanical seal for easy maintenance. You heard that right, no mechanical seal. Our pumps also feature a dual-sealed grease chamber and a 4-bolt quick-access suction cover for next-level maintenance accessibility.

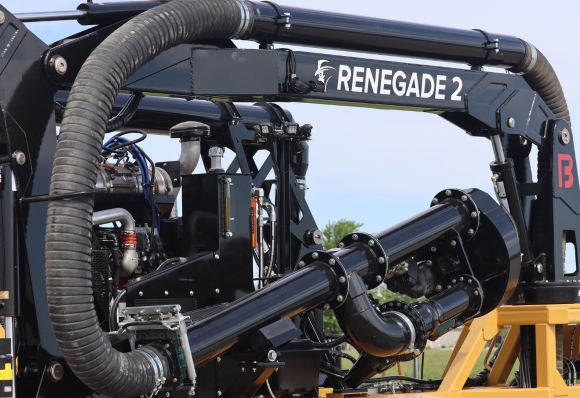

The 32′ boom has maneuverability and accurate control in mind with its triple-section boom design. The 8″ plumbing integrated through the boom is a key upgrade, greatly enhancing ease of use and operational efficiency by minimizing external hoses and drastically reducing setup time.

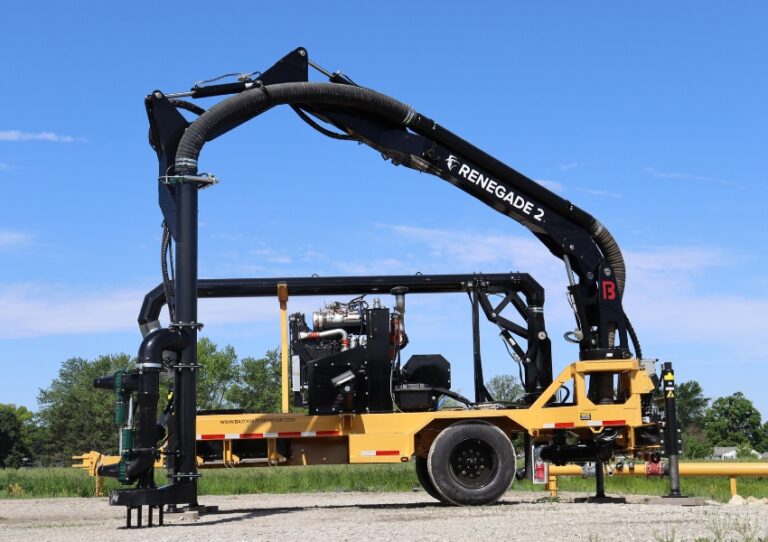

32′ High Flow Boom

• Max. Depth:  13’ below grade out 16’ from the side of the trailer

• Max. Reach:  28’ from the side of the trailer at ground level

• Max. Slurry Store Height:  15’ 6”

The triple-section boom rotates 270° (180° to the left, 90° to the right), allowing you to set up in one location and pump out multiple pump-outs.

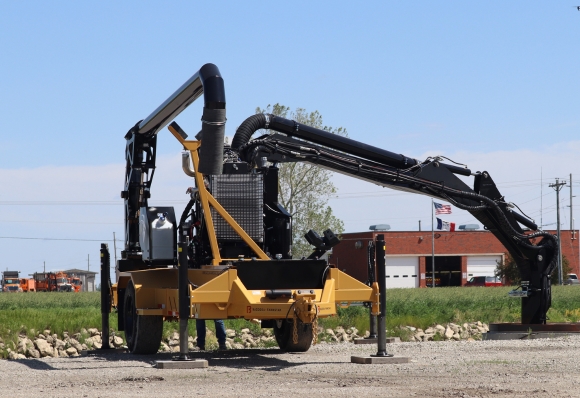

Dual, rotating agitation nozzles provide agitation while pumping. Keep one or both nozzles open while pumping to continue agitation.

The 10” diameter load stand increases your loading speed while reducing foaming. Plus, the boom integration keeps operators safer by reducing the equipment needed to do the job.

The boom remote can control the load stand for easy and precise placement of the fill pipe, and the tank fill remote fob can speed up the tank filling process by allowing operators to switch from agitation to fill mode without leaving the cab.

Maximum Fill Height: 16’ 5”

Maximum Reach Off the Passenger Side: 15’

With our optional rechargeable remote controls, you can place the pump and operate the agitation, pump, force-feed, and tank fill functions without leaving your truck or tractor cab. Talk about convenience.

• We also offer tank fill remote fobs that allow each tank operator to remotely switch from agitate to fill mode without shutting down or leaving their tractor cab when they pull up under a load stand. And guess what? There’s no limit to how many fobs you can connect to one Renegade. You can thank us later.

• The boom remote controls all boom movement functions. (Up, down, in, out, and left/right nozzles) Not only that, but the buttons on the main remote are proportional, so the more pressure you apply, the quicker the function occurs. Proportional functionality allows you to work safely by having extreme control over your Renegade.

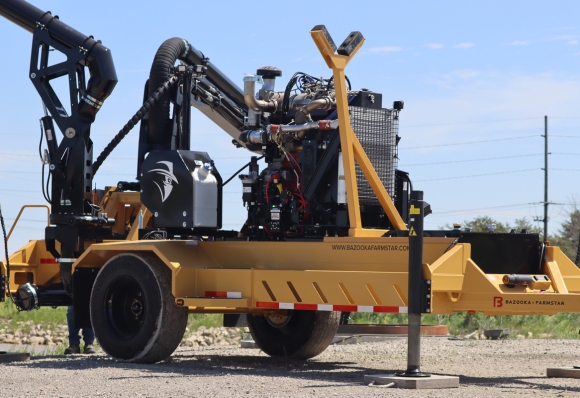

• High-ground clearance trailer design
• Four hydraulic downriggers for stability

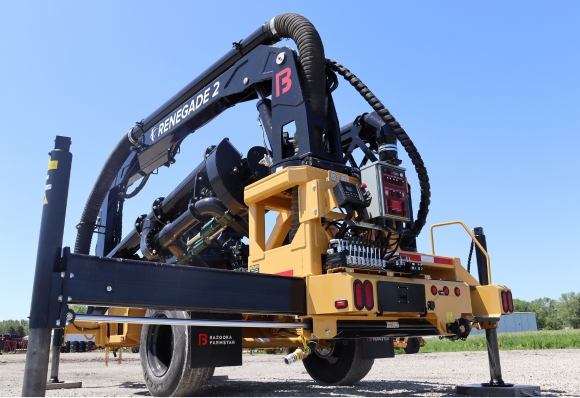

• Single location operator station located in the rear of the trailer
• Gooseneck or bumper hitch options
• Mounted hose reel upgrade for 100’ of 10” hose

Set downriggers without starting the engine. 12VDC hydraulic backup pump can be used for boom function if engine is inoperable.
