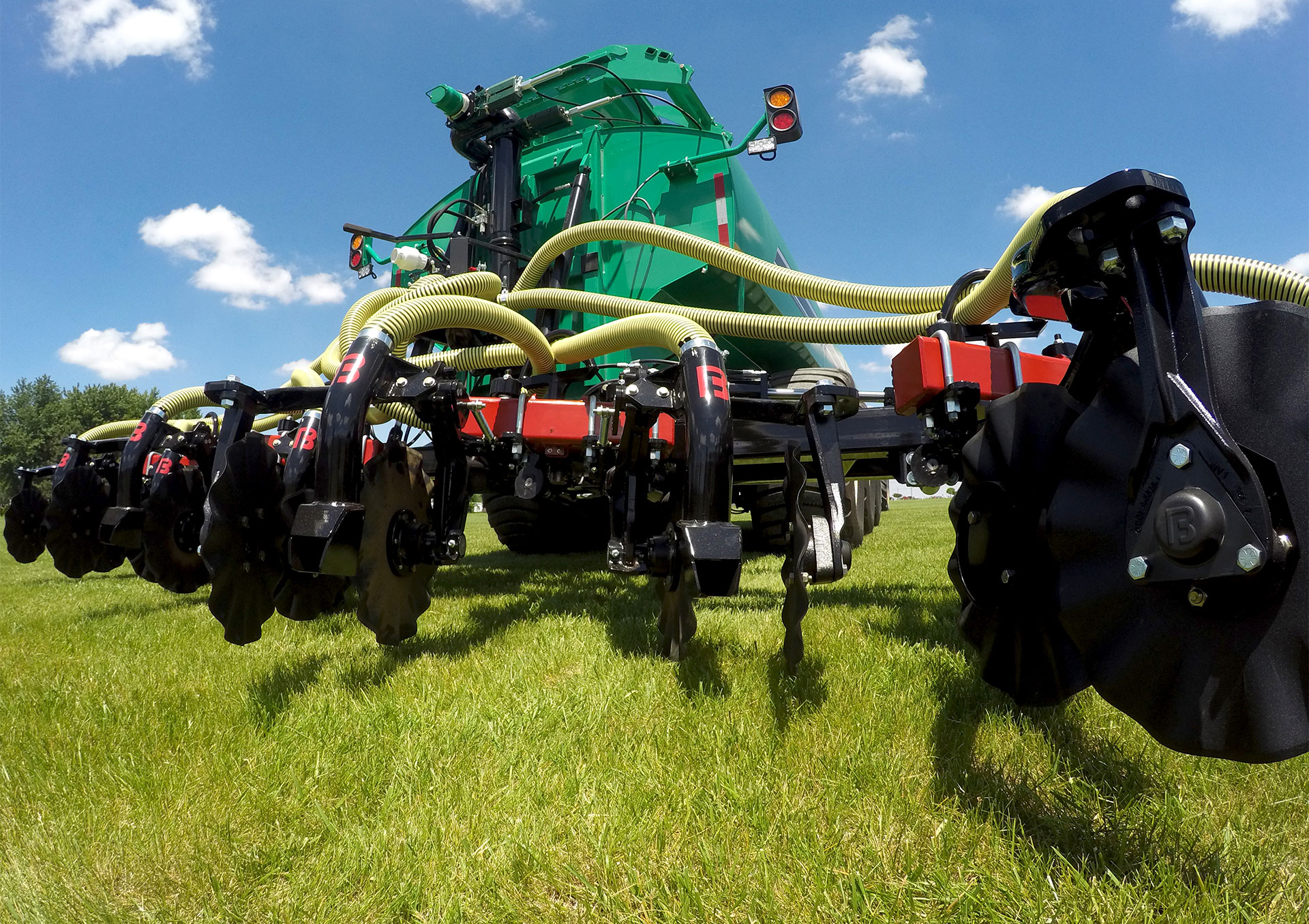

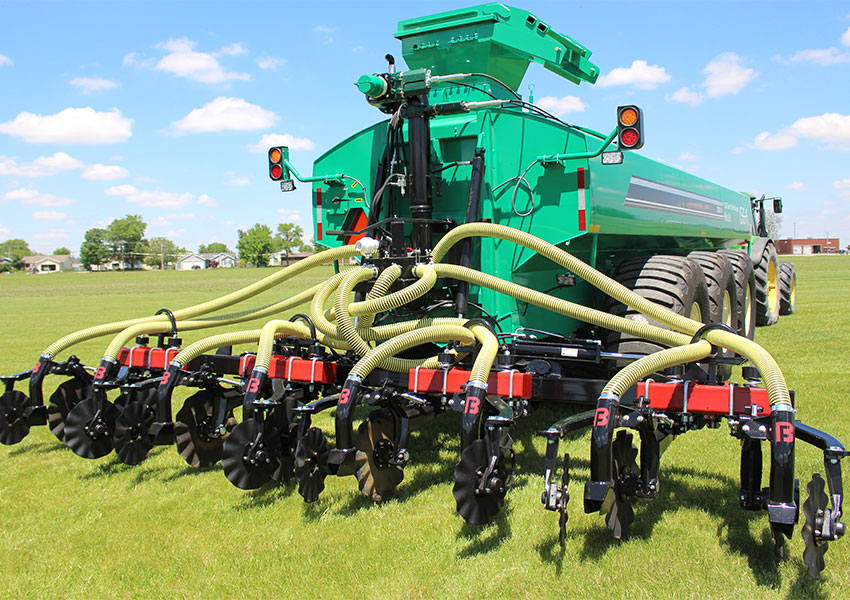

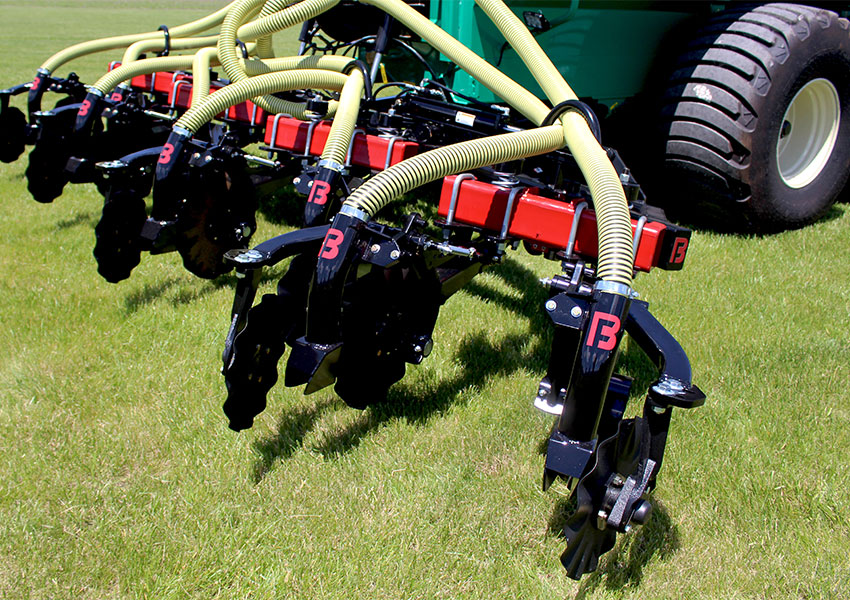

Equipped with two swivel-mounted Phantom Injection Units spaced 24” or 30” apart, you’re able to thoroughly cover your field even in rougher terrain. The mounts can swivel 30° in each direction to track contours without sacrificing top-notch injection performance. The Ground Tracker design reduces strain on liquid manure tanks and injection units, extending the useful life of your equipment.

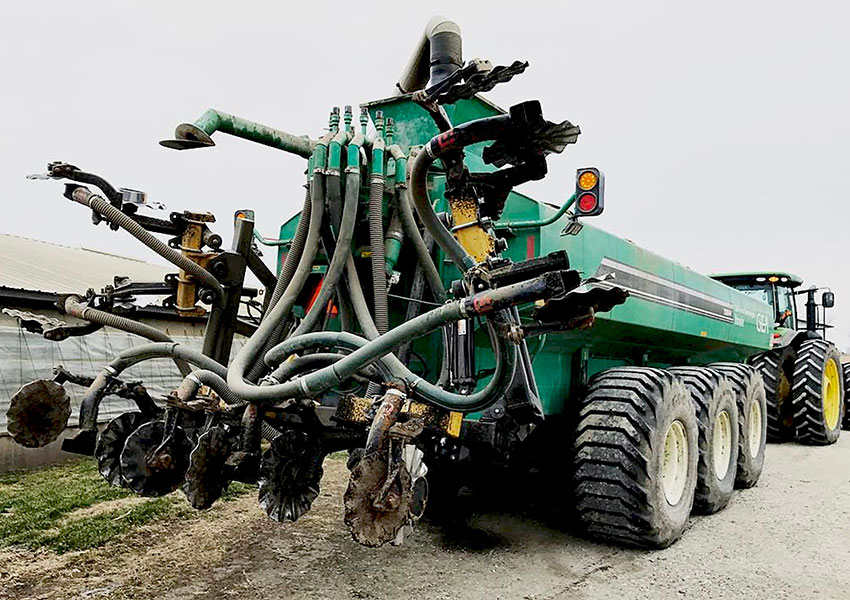

Locked, loaded and ready to ride. The hydraulic travel locks are sequenced with the wing fold cylinders for ease of operation and allow the swivels to remain in place in transport.

• Unfolding: When the wing cylinders are fully extended, the lock cylinders automatically retract into the ‘unlocked’ position, allowing full travel of the swivels.
• Folding: The lock cylinders automatically extend to the ‘locked’ position, so the wings will fold up into the travel position.
  The angled-hinge design allows the wings to tuck in as close as possible to the tank creating a narrow profile, ideal for tank operators traveling down the road.

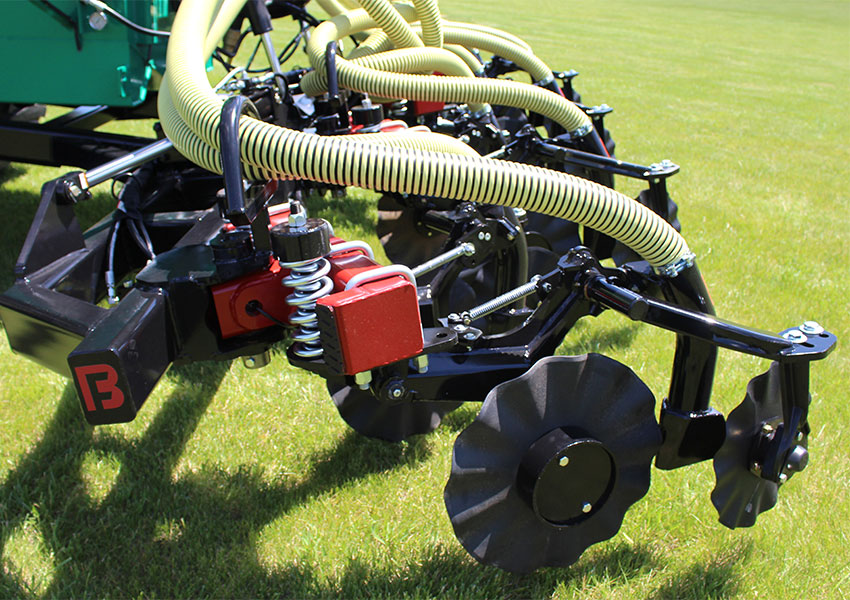

The Phantom unit precisely injects liquid manure 4-6” into the ground using its 22” main coulter blade and a 17” single closure blade. This is the ideal nutrient depth to promote crop growth, and ultimately increases yields. Not only that, but because there is little to no liquid manure left on top of the ground, liquid manure odor is reduced. Your bank account and your neighbors will thank you.

At a glance the Phantom injection unit benefits (or see all the details here):

• Low maintenance
• Reduced unit clogging/down-time
• Minimal soil disturbance
• Reduced streaking in the field
• Even nutrient coverage throughout the field, precise nutrient placement, no additional tillage required
• Versatile spacing configurations

The Phantom unit injects liquid manure into the ground so precisely that you might not even be able to tell it went through the field (hence its name). Minimal soil disturbance allows the ground to maintain its topsoil profile, reducing erosion and liquid manure runoff.

Looking to apply 2,500 gallons per acre (GPA)? How about 20,000? Consider it done. The Phantom unit can handle a variety of liquid manure rates and achieve thorough coverage. The Phantom units are mounted on a 4.5° mounting plate and are rated for up to 12 MPH.

Need a little more ground penetration to really get that liquid manure into harder ground? Upgrade your tank bar with Phantom Edge units and bump that GPA range up to 20,000+ while you’re at it. (Phantom ratings: 1-6 MPH for 6° and 7-12 MPH max speed for 4.5°)

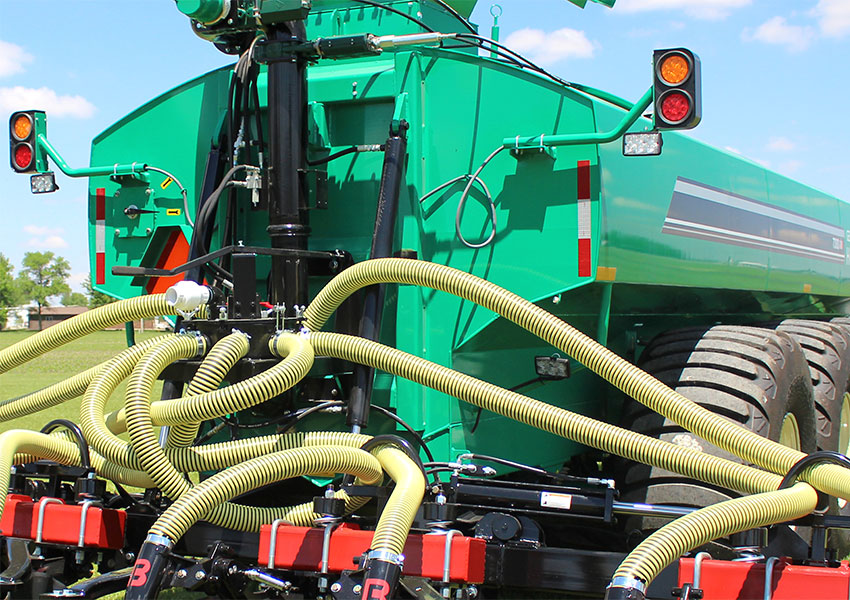

The timed manifold evenly distributes liquid manure across the tank bar as it’s being applied throughout the field. The manifold sits low on the tank, which makes it easier and safer to maintain and clean out whether it be on the job, or at the end of a season.
