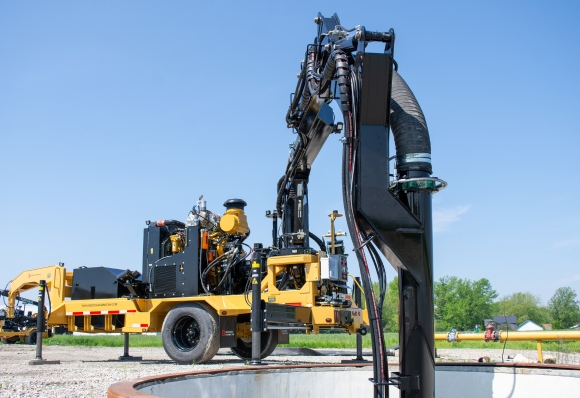

32′ Outlaw Force-Feed Trailer

UNBEATABLE VALUE MEETS HIGH-PERFORMANCE

The 32′ Outlaw Force-Feed Trailer is a heavy-duty, high-performance manure-handling solution designed to maximize efficiency and productivity.

Increased productivity and efficiency
Precise boom maneuverability
Convenient transport and setup

Download Brochure

Request a Quote Schedule a Demo

Features

UNLEASH THE BEAST THAT IS RIGHT FOR YOUR BOTTOM LINE.

High Flow and Increased Efficiency

Choose your pumping power:
2500 GPM | 455 HP
3500 GPM | 577 HP
3750 GPM | 684 HP

Choose from a range of pumps that match your operation’s flow rate and manure consistency.
The high-performance 15” AR 400 BF submersible pump or 18″ white iron Bazooka Farmstar submersible pump features a heavy-duty bearing housing with no mechanical seal for easy maintenance. You heard that right, no mechanical seal. Our pumps also feature a dual-sealed grease chamber and a 4-bolt quick-access suction cover for next-level maintenance accessibility.
8-inch plumbing increases flow and/or reduces power consumption.

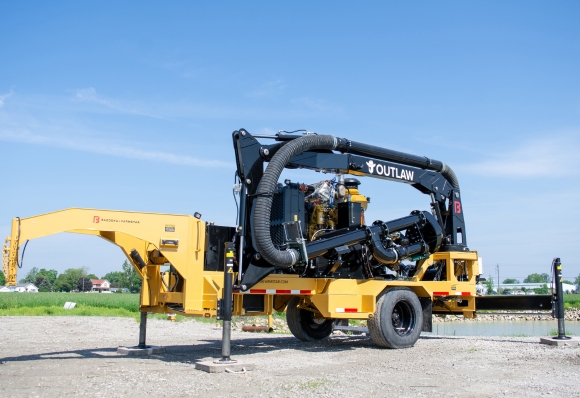

Easy to Maneuver Boom with Integrated Plumbing

The 32′ boom has maneuverability and accurate control in mind with its triple-section boom design. The 8″ plumbing integrated through the boom is a key upgrade, greatly enhancing ease of use and operational efficiency by minimizing external hoses and drastically reducing setup time.

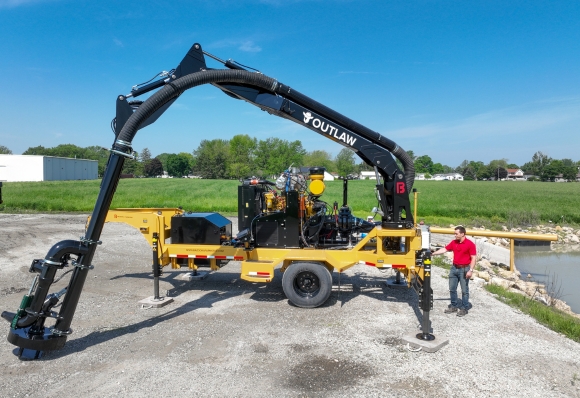

32′ High Flow Boom

Max. Depth: 13’ below grade out 16’ from the side of the trailer

Max. Reach: 28’ from the side of the trailer at ground level

Max. Slurry Store Height: 15’ 6”

The triple-section boom rotates 270° (180° to the left, 90° to the right), allowing you to set up in one location and pump out multiple pump-outs.

Agitate, Pump, or Both

Add optional dual, rotating agitation nozzles to provide agitation while pumping. Keep one or both nozzles open while pumping to continue agitation.

Trailer Designed with the Operator in Mind

High-ground clearance trailer design
Four hydraulic downriggers for stability
Single location operator station located in the rear of the trailer
Gooseneck or bumper hitch options
Optional boom remote for easy set-up and operation

12VDC Hydraulic Backup Pump

Set downriggers without starting the engine. 12VDC hydraulic backup pump can be used for boom function if engine is inoperable.

Increased Up-Time

The Outlaw delivers quick transport and set-up time by eliminating the need for a tractor, pit pump, lagoon pump, hose, etc., to get the job done. With a set-up so easy that one person could do it in a matter of minutes of pulling onto the job site, you‘ll wonder why you didn‘t do it sooner.

Nexus Pump Control Technology Compatibility

Outlaw Trailers are compatible with our top-of-the-line Nexus electronic pump control technology that brings power to your fingertips. Nexus provides real-time pump monitoring for off-site pump management, which is beneficial for small and large pumping crews alike. Operate your pumps from anywhere you‘ve got an internet connection with the push of a button, using your mobile phone, tablet, or desktop. Seriously, you can turn your pump units on and off from thousands of miles away if you want to.

Trailer Options

- Single Axle
- Tandem Axle

Specifications

Single Axle Trailer
- Standard
  - Gross Weight: 17,000 lbs. (Not including fuel)
  - Gooseneck Trailer Length: 27’ (Bumper hitch trailer available)
  - Gooseneck Trailer Width: 103”
  - Approximate Overall Trailer Height: 11’ 9” (153”)
  - Tongue Weight: Full- 2,400 lbs. | Empty- 1,000 lbs.
  - Max. Depth: 13’ (Below grade) Out 16’ from side of trailer
  - Max. Reach: 28’ (From side of trailer) at ground level
  - Max. Slurry Store Height: 15’ 6”
  - Triple-Fold Boom
  - 400-Gallon Steel Fuel Tank w/ Baffle and Sump Area
  - Single 25,000 lbs. Tandem Leaf Spring Axles
  - [2] 10-Bolt 22.5×13 -3 Offset Used Super Single Tires
  - 12,000 lbs. Greaseable, Quick-Change Hubs, and Spindles
  - Fenders
  - DOT Trailer Lighting
  - Rear Hitch Receiver Ready with Trailer Plug
  - Rear Axle Electric Over Hydraulic Brakes
  - Front Storage Basket Built into the Frame
  - Integrated Rear Toolbox with USB Charging Port for Remote
  - Discharge Plumbing, 10” Pig Launcher with Chained Cap, and
  - Hydraulic Gate Valves
  - [6] LED Flood Lights
  - 360° Flood Light Halo [6] LED Flood Lights Included
  - Electric Over Hydraulic Pump Backup
  - Rear Mounted Controls
  - [4] Hydraulic downriggers
- Upgrade Options
  - [2] 10-Bolt 22.5×13 -3 Offset New Super Singles
  - [2] 550 Series 45-22.5 18-Ply Flotation Tires
  - Discharge Plumbing with Pig Launcher and Hydraulic Gate valves (6819 Pumps)
  - Discharge Plumbing with Pig Launcher and Hydraulic Gate valves (6NHTC Pumps)
  - Agitation | Lower Nozzle Only | Includes rotation function and gate valves
  - Agitation | Upper and Lower Nozzle | Includes rotation function and gate valves
  - 180 CC Hydrostat Motor for 15” Pump | 3000 GPM | 500+ HP Req’d
    NEXUS Engine Control System | Includes 2 Digital Pressure Gauges,
  - Antenna, Stand, and 1 Year Paid Subscription
  - Remote Control Package | Includes Boom and Agitation Rotation Functions
  - Wireless Boom Remote Control Transmitter Replacement
  - 6” Krohne Flowmeter, Display, and [2] 12’ Cables
  - 8” Krohne Flowmeter, Display, and [2] 12’ Cables
  - Hydraulic Hookup for Mantis Lagoon Sticks
  - Remote Control Charger [1] | Car 12V Micro USB
  - Remote Control Charger [1] | Wall 110V Micro USB

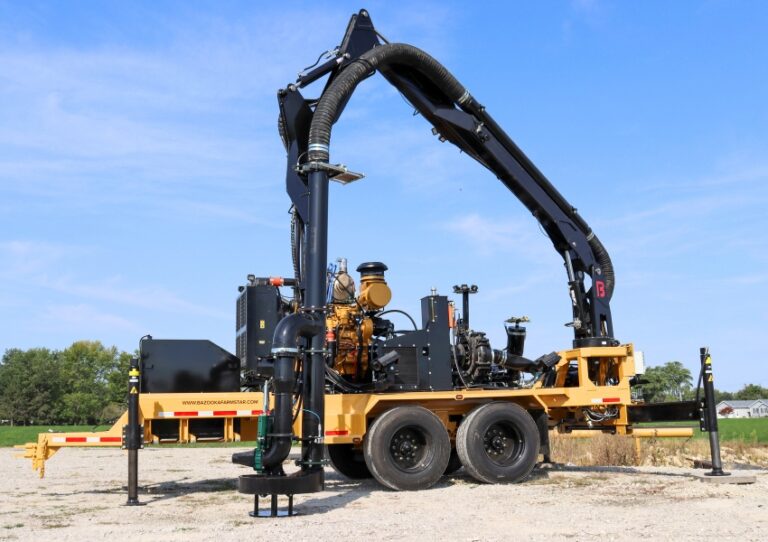

Tandem Axle Trailer
- Standard
  - Triple-Fold Boom
  - 8” Continuous Boom Plumbing
  - [2] 15k Tandem Leaf Spring Axles, [4] 12k Greasable Hubs, [4] Used Super Single Tires
  - 400 Gallon Steel Fuel Tank w/ Baffles and Sump
  - Rear Mounted Hydraulic and Engine Controls
  - [4] Hydraulic downriggers, Rear Driver’s side extends outward
  - Electric over Hydraulic Disc Brakes
  - 6” Discharge Plumbing with 8” male HSG connection, 10” Pig Launcher with Chained Cap, and Hydraulic Gate Valves
  - Manual Hydraulic Boom Controls
  - Rear Hitch Ready with Trailer plug wiring
  - [6] LED Flood Lights
  - Flood Light Halo – High Mount 360 Deg. [6] LED Lights
  - Electric over Hydraulic pump backup
- Upgrade Options
  - UTV Deck Upgrade
  - [4] 10-Bolt 22.5×13 -3 Offset New Super Singles
  - [4] 550 Series 45-22.5 18-Ply Flotation Tires
  - Manual Clutch with Hand Lever
  - Hydraulic Clutch Controlled by NEXUS
  - Discharge Plumbing with Pig Launcher and Hydraulic Gate valves (6819 Pumps)
  - Discharge Plumbing with Pig Launcher and Hydraulic Gate valves (6NHTC Pumps)
  - Agitation | Lower Nozzle Only | Includes rotation function and gate valves
  - Agitation | Upper and Lower Nozzle | Includes rotation function and gate valves
  - 180 CC Hydrostat Motor for 15” Pump | 3000 GPM | 500+ HP Req’d
    NEXUS Engine Control System | Includes 2 Digital Pressure Gauges,
  - Antenna, Stand, and 1 Year Paid Subscription
  - Remote Control Package | Includes Boom and Agitation Rotation Functions
  - Wireless Boom Remote Control Transmitter Replacement
  - 6” Krohne Flowmeter, Display, and [2] 12’ Cables
  - 8” Krohne Flowmeter, Display, and [2] 12’ Cables
  - Hydraulic Hookup for Mantis Lagoon Sticks
  - Remote Control Charger [1] | Car 12V Micro USB
  - Remote Control Charger [1] | Wall 110V Micro USB
- Suggested Packages for GPM

  2500 GPM | 455 HP
  3500 GPM | 577 HP
  3750 GPM | 684 HP

Models

- 305-004

  32’ Outlaw | Single Axle | Gooseneck Hitch | 8” Plumbing | 15” Pump
- 305-005

  32’ Outlaw | Single Axle | Bumper Hitch | 8” Plumbing | 15” Pump
- 305-006

  32’ Outlaw | Single Axle | Gooseneck Hitch | 8” Plumbing | 18” Pump
- 305-007

  32’ Outlaw | Single Axle | Bumper Hitch | 8” Plumbing | 18” Pump
- 305-008

  32’ Outlaw | Tandem Axle | Gooseneck Hitch | 8” Plumbing | 15” Pump
- 305-009

  32’ Outlaw | Tandem Axle | Bumper Hitch | 8” Plumbing | 15” Pump
- 305-011

  32’ Outlaw | Tandem Axle | Gooseneck Hitch | 8” Plumbing | 18” Pump
- 305-012

  32’ Outlaw | Tandem Axle | Bumper Hitch | 8” Plumbing | 18” Pump
